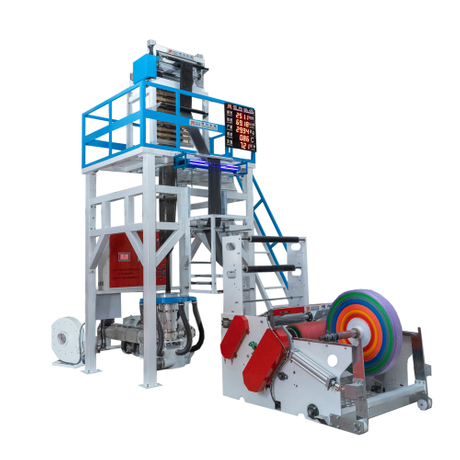

Film Blowing Machine Troubleshooting: 7 Common Problems and Solutions (2026)

A packaging converter in Lagos called me last year with a problem that had been costing him roughly $2,800 per month in rejected film for three months. His operators described the defect as "wavy lines across the film" — visible gauge bands at roughly 150mm intervals. They had adjusted the air ring gap four times. They had changed the die gap twice. They had slowed the line speed from 130 kg/h to 105 kg/h, which reduced but did not eliminate the bands. Nobody had checked the heater bands.

I asked him to walk the factory floor with his phone camera and show me the temperature controller display for each barrel zone on the core extruder. Zone 3 showed a setpoint of 185°C but an actual reading oscillating between 172°C and 189°C — a 17°C swing. The heater band on zone 3 had failed partially, and the thermocouple was cycling the remaining heating elements on and off trying to compensate. The fix cost $85 and took 45 minutes. The problem had cost him over $8,000.

This article covers the seven problems I encounter most frequently across the 120+ blown film factories I have visited or supported remotely. Each section follows a consistent format: what the defect looks like, what causes it, and how to fix it — ordered from most likely to least likely.

1. Film Gauge Variation — Thickness Bands and Uneven Profile

What You See

Visible transverse bands across the film web — alternating thick and thin zones that appear as stripes when the roll is viewed from the side. In severe cases, the bands are visible on the finished bag as alternating glossy and hazy stripes. Measured with a micrometer at 12 points across the web, thickness variation exceeds ±8%.

Root Causes (Most Common First)

Cause 1 — Melt pressure oscillation from a worn or incorrect screw. This is the most common cause and the most frequently overlooked. A screw worn 1.0mm or more undersize on the flight OD allows molten polymer to leak backward over the flight tip — called "recirculation flow." The melt pressure at the die entry oscillates because the leakage varies with each screw rotation. On a 55mm extruder, this produces a pressure rhythm that translates into a visible thickness band repeating every 100–200mm of film length, depending on screw RPM and haul-off speed.

Cause 2 — Failed or failing heater band on one barrel zone. As in the Lagos story, a single cold zone creates a viscosity mismatch in the melt stream. The polymer leaving that zone is 10–20°C cooler and 15–30% more viscous than the polymer from adjacent zones. The die head cannot fully homogenize this viscosity gradient, and the result is a periodic thick-thin pattern in the finished film.

Cause 3 — Die gap uneven or partially obstructed. A die lip bolt overtightened by 0.1mm, a nick in the die lip from a cleaning tool, or degraded polymer build-up in one section of the spiral channel creates a permanent thick or thin band that does not move or change with screw speed adjustment.

How to Fix It

1. Inspect heater bands first — it takes 5 minutes. Walk the barrel with an infrared thermometer. Any zone more than 8°C from setpoint needs attention. Check thermocouple contact — a loose thermocouple reads air temperature, not metal temperature, and drives the controller to overshoot.

2. Record melt pressure at the die entry every 15 minutes for one shift. Variation exceeding ±5% with stable extruder RPM points to screw wear or a screw-material mismatch. Pull the screw and measure flight OD at 3 points along the metering section. Wear exceeding 1.0mm: recondition or replace.

3. Measure film thickness at 12 evenly spaced points across the web. A band that repeats at a specific interval related to screw RPM is a screw or melt-pressure issue. A band that stays at a fixed position on the web is a die gap or die lip issue.

2. Bubble Instability — Wobble, Breathing, and Frost Line Drift

What You See

The bubble does not hold a steady shape. It "breathes" — expanding and contracting rhythmically. Or it wobbles side-to-side above the frost line. Or the frost line height drifts up and down by 100mm or more during a production run. In all cases, film width, thickness, and roll profile are inconsistent.

Root Causes (Most Common First)

Cause 1 — Unstable or obstructed cooling air. The air ring lip gap is uneven around its circumference, or one section of the air ring is partially blocked by dust, polymer fume residue, or a misaligned adjustment ring. Unlike other causes, air ring problems create asymmetry — the bubble wobbles more in one direction than another.

Cause 2 — Excessive or insufficient Blow-Up Ratio (BUR). LDPE is stable at BUR 1.5:1 to 3.5:1. LLDPE is stable at BUR 1.5:1 to 2.5:1. Pushing LLDPE to BUR 3.0:1 for a wider film on the same die produces a bubble that is too thin-walled at the frost line to resist air currents — it wobbles with every draft from the factory door opening.

Cause 3 — Inconsistent extruder output. If one extruder on an ABA line feeds at a slightly varying rate due to bridging in the hopper, inconsistent pellet size, or screw speed fluctuation from a VFD fault, the total bubble output varies — the bubble breathes in rhythm with the output fluctuation.

How to Fix It

1. Clean the air ring. Remove and disassemble the air ring every 400–600 operating hours. Wipe all surfaces with a clean cloth and check the lip gap with feeler gauges at 4–6 points around the circumference. Variation should be under 0.05mm.

2. Check your BUR against your material. BUR = Lay-flat width × 2 ÷ (π × die diameter). If you are running LLDPE at BUR above 2.5:1, either reduce BUR or use an LDPE-LLDPE blend to improve melt strength.

3. Stabilize hopper feed. Install a hopper level sensor if material bridging is suspected. For recycled flake or regrind with inconsistent particle size, a crammer feeder on the extruder throat provides consistent feed density.

3. Melt Fracture — Sharkskin Surface and Wavy Edges

What You See

The film surface has a rough, matte, "sharkskin" texture — visible to the naked eye and unmistakable to the touch. It appears primarily on the outer film surface. In mild cases, it affects only the film edges. In severe cases, the entire film surface is rough and the film loses its gloss and clarity. The defect is periodic and matches extruder output rate — it worsens as output increases.

Root Causes (Most Common First)

Cause 1 — Output rate too high for the die gap and melt temperature. Melt fracture occurs when the shear stress at the die lip exceeds the melt strength of the polymer. Shear stress increases with output rate and decreases with die gap and melt temperature. A die gap of 1.2mm running LLDPE at high output (producing shear rates above the critical threshold, typically 10⁴–10⁵ s⁻¹ for LLDPE) generates sharkskin.

Cause 2 — Melt temperature too low. Every 10°C increase in melt temperature reduces melt viscosity by roughly 15–25% for LDPE and LLDPE. Running at 165°C instead of 185°C increases shear stress at the die lip by approximately 30–40% for the same output rate.

Cause 3 — Die lip damage or deposit build-up. A microscopic nick on the die lip, or a carbonized polymer deposit from previous overheating, creates a localized high-shear point that initiates melt fracture even at moderate output rates.

How to Fix It

1. Increase die gap by 0.2–0.3mm. This is the fastest fix and resolves roughly 60% of melt fracture cases. A die gap of 1.5–1.8mm handles most LDPE and LLDPE output ranges without fracture. Note: a wider die gap increases gauge, so you will need to adjust haul-off speed to maintain target thickness.

2. Increase barrel temperature in the final zone by 8–12°C. This reduces melt viscosity entering the die. Do not exceed the polymer's degradation temperature — for LDPE, 210°C is the practical upper limit for continuous operation.

3. Polish the die lips. If sharkskin appeared suddenly on a machine that previously ran the same material without issues, inspect the die lips under magnification. Carbonized deposits can be polished out with a fine-grit lapping compound without removing the die from the machine.

4. Gels and Fisheyes — Contamination Spots in the Film

What You See

Small, hard, translucent or opaque spots in the finished film — typically 0.2–2.0mm in diameter. They are visible when the film is held up to light and appear as small lumps or dots. In a sealed bag, a gel at the seal area causes a leak. In printed film, gels create print voids. The frequency increases and decreases unpredictably — sometimes 5 gels per square meter, sometimes none.

Root Causes (Most Common First)

Cause 1 — Cross-contamination in recycled material. This is the leading cause. Post-industrial recycled PE frequently contains traces of PP (polypropylene) from mixed waste streams. PP melts at 160–170°C, but LDPE extrusion runs at 170–195°C. The PP is only partially melted — it forms a discrete gel particle in the PE matrix. Even 0.5% PP contamination in recycled PE feedstock produces visible gels.

Cause 2 — Degraded polymer in dead spots. Polymer that sits stagnant in a dead spot — the screen changer cavity, a poorly designed adapter, a die channel corner — degrades over hours or days at processing temperature. Eventually a chunk breaks loose and appears in the film as a dark or amber gel.

Cause 3 — Insufficient or damaged screen pack filtration. A screen pack with a hole, a torn screen, or a screen mesh too coarse for the material allows contaminant particles through. For recycled PE with potential PP contamination, a minimum of 80–100 mesh final screen is recommended.

How to Fix It

1. Perform a burn-off test on a gel sample. Heat a gel particle on a hot plate at 220°C. PE melts completely and flows. PP remains as a distinct non-melting particle. If the gel does not melt at 220°C, it is cross-contamination — audit your recycled material supply.

2. Reduce screen pack change interval. If gels increase toward the end of a production shift, the screen pack is loading up and pressure is forcing contaminants through. Change screens every 8–12 hours when running recycled PE above 20%.

3. Purge and clean the system. A commercial purging compound run through the extruder and die at the end of each production week removes degraded polymer from dead spots. Run purging compound for 15–20 minutes at 10–15°C above normal processing temperature.

5. Low Output — Machine Produces Below Rated Capacity

What You See

The extruder runs at its rated screw RPM but actual output — measured by weighing finished rolls — is 10–25% below the supplier's quoted specification. Energy consumption per kilogram is above the expected range. The problem develops gradually over months, making it hard to notice until someone compares current production records against the machine's first-year output data.

Root Causes (Most Common First)

Cause 1 — Screw and barrel wear. This accounts for roughly 70% of gradual output loss cases. A screw worn 1.5mm undersize on the flight OD in a 55mm extruder loses 10–18% output at the same RPM, according to Mingyang's service records. The mechanism: increased clearance between screw flight and barrel wall allows molten polymer to recirculate backward rather than being conveyed forward.

Cause 2 — Incorrect screw design for the material. A general-purpose 28:1 L/D PE screw running material it was not designed for — particularly recycled PE with a wider molecular weight distribution or HDPE requiring higher processing temperatures — delivers 15–25% less output than a purpose-designed screw.

Cause 3 — Feed zone issues. The feed throat cooling is insufficient, causing premature melting in the feed zone (bridging). Or the hopper is not maintaining consistent material level, causing the screw feed section to run partially empty (starving).

How to Fix It

1. Measure actual output against baseline. Weigh the finished film from exactly one hour of continuous production at steady-state RPM. Compare to the machine's original commissioning data or the supplier's specification for the same material and gauge. A drop exceeding 10% that developed over 6+ months almost always points to screw/barrel wear.

2. Pull and measure the screw. Flight OD at the metering section. Wear over 1.0mm: recondition (weld overlay and re-machine, $1,200–$2,500) or replace ($2,800–$5,000 for a 55mm barrier screw). The payback from recovered output is typically 2–4 months.

3. Verify feed throat cooling water flow. The feed throat should be cool enough to touch — typically 30–50°C. If it is too hot to hold a hand against, increase cooling water flow. Premature melting in the feed zone reduces conveying efficiency.

6. Poor Film Clarity — Excessive Haze and Low Gloss

What You See

The film appears cloudy or milky rather than transparent. Haze measured with a haze meter exceeds 8–10% for LDPE film (good LDPE clarity film should measure 4–7% haze at 50 microns). Print on the reverse side of the film appears dull or washed out. The problem may affect some production batches but not others, even with the same raw material.

Root Causes (Most Common First)

Cause 1 — Melt temperature too low. LDPE achieves optimal clarity when the melt reaches 185–200°C at the die entry. At lower temperatures, micro-crystalline regions in the polymer are not fully melted, and these act as light-scattering centers in the solidified film. Unlike melt fracture, which also results from low temperature, haze from low melt temperature is uniform across the film — it has no visible texture.

Cause 2 — Frost line too low or cooling too rapid. When the bubble is cooled too quickly — frost line below 300mm from the die face — the polymer chains do not have time to relax into an ordered structure before solidification. The result is an amorphous, hazy film. LDPE clarity film typically requires a frost line height of 400–600mm.

Cause 3 — Recycled PE content in skin layers. If recycled PE containing even trace amounts of a higher-density fraction (HDPE, PP contamination as discussed in section 4) reaches the skin layer, it crystallizes at a different rate than the LDPE matrix, creating micro-domains that scatter light. ABA machines avoid this by isolating recycled content to the buried core layer, but if the layer ratio is misconfigured (skin layer too thin), core material can bleed through.

How to Fix It

1. Raise barrel temperature in the final 2 zones by 10–15°C. Measure melt temperature at the die entry with a needle probe — not just the barrel setpoint. The actual melt temperature can be 8–15°C below the barrel setpoint at high throughput.

2. Raise the frost line by reducing air ring blower speed or closing the air ring gap slightly. Target a frost line height of 400–600mm for LDPE. The frost line should be a smooth, gradual transition from transparent melt to hazy solid — a sharp frost line indicates over-cooling.

3. Verify ABA layer ratio. If recycled PE is in the core, ensure each skin layer is at least 25% of total thickness. A skin ratio below 20% risks core-layer material migrating to the surface during bubble expansion.

7. Frequent Bubble Breaks — Production Stoppages

What You See

The bubble ruptures during production — sometimes once per shift, sometimes several times per hour in severe cases. Each break requires the operator to re-thread the film through the nip rollers and winder, generating 5–15 kg of scrap and 15–30 minutes of lost production. The breaks appear random: different days, different materials, different operators.

Root Causes (Most Common First)

Cause 1 — Contamination in the raw material. A single particle of metal, sand, or degraded cross-linked gel in the melt stream creates a weak point in the bubble wall. As the bubble expands, the contaminant particle — which does not stretch — creates a hole that propagates into a full break. Source: recycled material without adequate magnetic separation and melt filtration.

Cause 2 — Excessive Blow-Up Ratio. As discussed in Problem 2, running BUR above the material's melt strength limit produces a bubble wall too thin to withstand normal air currents and minor output fluctuations. The break usually occurs at the frost line — the point of minimum wall thickness before solidification.

Cause 3 — Inconsistent extruder output causing bubble wall thickness fluctuation. A momentary drop in extruder output — from a hopper bridge clearing suddenly, a VFD glitch, or a screw speed fluctuation — creates a thin spot in the bubble wall. The thin spot expands more than the surrounding film (because it is thinner and therefore stretches more under the same internal air pressure), becomes thinner still, and ruptures.

How to Fix It

1. Install or upgrade melt filtration. A screen changer with 60/80/100 mesh screen pack is the minimum for virgin PE. For recycled PE, add a 20–40 mesh breaker plate before the screen pack. For critical applications, consider a continuous screen changer that swaps screens without interrupting production.

2. Reduce BUR by 0.3–0.5:1. If breaks continue after filtration is confirmed clean, the bubble wall is simply too thin at your current BUR. Reduce BUR and compensate by using a larger die for the same lay-flat width, or accept a narrower film width.

3. Check hopper and feed zone for consistent material flow. A bridging event that clears itself produces a momentary output surge followed by a starvation dip — the surge creates a thick spot, the dip creates the thin spot that breaks.

Preventive Maintenance: The 300-Hour Checklist

The single most effective way to reduce troubleshooting calls is a structured preventive maintenance routine. Based on Mingyang's service data across 120+ installations, factories that follow this checklist experience roughly 65–75% fewer unscheduled downtime events than factories that run machines until a problem appears.

Anti-sell: Not every problem requires a technician or new parts. Before calling for service, work through the diagnostic sequence in this article. I estimate that roughly 40% of the "machine problems" reported to Mingyang's service team are resolved by the customer after walking through the checks above — saving both downtime and service call cost. However, if you have checked the three root causes for your symptom and the problem persists, do not delay — a small issue left unaddressed becomes a screw replacement or gearbox rebuild.

Why Buyers Choose Mingyang for Film Blowing Machine Support

Troubleshooting is where the machine supplier's engineering depth and after-sales commitment become visible. A supplier who cannot diagnose your problem over the phone within an hour is a supplier who will leave you down for days while parts ship.

20+ years manufacturing and servicing blown film equipment. Mingyang (Jiangyin Mingyang Packaging Machinery Co., Ltd.) has produced film blowing machines since 2003 from Jiangyin, Jiangsu. The service team includes engineers who have diagnosed problems on over 120 production lines across Southeast Asia, Africa, the Middle East, and South America — from simple heater band failures to complex multi-layer die flow balancing issues.

Remote diagnostic support — same business day. When a problem appears, send a photo or short video via WhatsApp to +86-189-6169-1127. Mingyang's service engineers typically diagnose the root cause within 1–2 hours based on visual defect patterns, temperature controller screenshots, and melt pressure readings. Most issues are resolved without a site visit.

2,000+ spare parts SKUs, 48-hour dispatch. Critical spares — screws, barrels, heater bands, thermocouples, VFD drives, die head components, gearboxes, screen changers — are stocked in Jiangyin and dispatched within 48 hours. Air-freight delivery to most destinations in Southeast Asia and South Asia lands within 5–7 working days.

CE-certified machines, operator training included. Every Mingyang machine ships with a 7–12 day on-site commissioning and training program covering startup/shutdown, material changeover procedure, temperature profile setup for different polymers, die gap adjustment, basic troubleshooting, and the preventive maintenance checklist in this article.

FAQ

Why does my film have transverse lines that appear at regular intervals?

Regularly spaced transverse lines — repeating every 100–300mm of film length — are almost always melt pressure oscillation from the screw. The spacing equals (haul-off speed in m/min ÷ screw RPM). If the spacing changes when you change screw speed, the cause is confirmed. Check for screw wear (measure flight OD — wear over 1.0mm causes pressure oscillation) or a material mismatch (a general-purpose screw running recycled PE). A less common cause is a damaged gearbox tooth producing a once-per-revolution pressure pulse — but this produces a sharper, more distinct line.

How do I know if my screw needs replacement versus reconditioning?

If the screw flight OD is worn 0.5–1.5mm undersize and the base metal is not cracked, reconditioning (weld overlay on the flight lands, re-machine to original diameter) costs $1,200–$2,500 for a 55mm screw and restores 95%+ of original performance. If wear exceeds 1.5mm, the barrel is likely worn as well — measure barrel ID at 3 points. A barrel worn over 1.0mm oversize combined with a heavily worn screw usually warrants replacing both. A new 55mm barrier screw costs $2,800–$5,000; a new barrel $3,500–$6,000.

What is the most common cause of sudden gel contamination in film that was previously clean?

A torn or improperly seated screen pack. If the screen pack is not seated flat in the screen changer, or if a screen has torn — particularly the fine final screen (80–100 mesh) — contaminants bypass filtration entirely. Change the screen pack immediately. If gels persist after a screen change, the contamination is in the material supply: test a batch of virgin-only PE. If gels disappear, your recycled material supplier introduced PP or cross-linked PE contamination.

Why does melt fracture only appear at high output rates?

Melt fracture is a shear-stress phenomenon. Shear stress at the die lip increases linearly with output rate. Every polymer has a critical shear stress threshold — for LLDPE, approximately 0.1–0.3 MPa at the die lip, depending on molecular weight distribution. Below this threshold, the melt surface is smooth. Above it, the melt surface fractures. The threshold is specific to each material grade: a narrow-molecular-weight-distribution LLDPE designed for high-speed extrusion tolerates higher output than a broad-distribution grade.

How often should I change the screen pack on my blown film extruder?

For 100% virgin LDPE/LLDPE: every 150–200 operating hours, or when melt pressure before the screen pack rises 15% above the clean-screen baseline. For material containing 20% or more recycled PE: every 80–120 operating hours. For material containing post-consumer recyclate: every 40–60 hours. A pressure-triggered continuous screen changer extends intervals and eliminates the output interruption of manual screen changes — payback is typically 8–14 months for lines running recycled content above 20%.

Can ambient factory temperature affect blown film quality?

Yes — and this is one of the most underappreciated variables. A factory that is 35°C in summer and 15°C in winter has a 20°C swing in cooling air temperature entering the air ring blower. Warmer air cools the bubble more slowly — the frost line rises, film clarity may improve but output is limited because the bubble is not fully solidified entering the nip. Colder air cools the bubble faster — output can increase but clarity may suffer from rapid quenching. Factories in regions with large seasonal temperature swings (northern India, Middle East, inland Africa) benefit from an air ring chiller that delivers consistent cooling air temperature year-round — typically 18–22°C.

How long should a blown film extruder screw last?

Processing 100% virgin LDPE/LLDPE with no fillers: 8–12 years before reconditioning is needed. Processing recycled PE at 20–40%: 5–8 years — recycled material contains trace abrasives (dust, pigment residues, slight carbonization) that accelerate wear. Processing CaCO₃-filled compounds (above 10% filler): 3–5 years — calcium carbonate is mildly abrasive. Processing with frequent startups and shutdowns (thermal cycling): accelerated wear because the screw and barrel expand and contract at slightly different rates, increasing clearance during each cold-start cycle. These estimates assume a nitrided or bimetallic barrel with proper hardness (HV 900+ on the inner surface).
