Views: 100 Author: carrie Publish Time: 2026-06-02 Origin: Site
Quick Answer
The fastest way to cut film production costs in 2026 is switching core-layer material to recycled PE on a 3-layer ABA blown film line — this alone saves $75,000–$180,000 per year for a mid-size factory running 500 tons annually, according to our installation data across 14 countries. After that, the next biggest levers are screw configuration optimization (12–18% energy reduction), scrap rate control from 7% down to 2% (saves $23,000/year at 500t output), and preventive maintenance scheduling. Most factories we audit can reduce total production cost by 18–28% without buying a single new machine.
In January 2025, a shopping bag manufacturer in Dhaka called us in a panic. His raw material cost had climbed 22% in eighteen months. Electricity rates had risen 15%. His largest customer — a European retail chain — was demanding a 6% price reduction on the next contract. "I am squeezed from both sides," he said. "If I cannot cut costs, I lose the account."
We spent three days on his factory floor with power meters, a production log analysis tool, and a material reconciliation spreadsheet. What we found is what I have found in roughly 80% of the factories I audit: the biggest cost leaks were not the ones he was watching. His operators tracked output per shift. Nobody tracked scrap per product change. Nobody had measured actual kWh per kilogram in two years. Nobody had compared the payback on a barrier screw upgrade — $4,200 installed — against the $11,800 in annual energy and scrap it was costing him to keep running the original general-purpose screws.
This article is the playbook we built from that audit — and from over 120 factory visits across Southeast Asia, Africa, and the Middle East. Every method here is measured, verified, and tied to a specific cost number.
Before discussing how to cut costs, you need to know where the costs actually live. Most factory owners focus on machine purchase price. Machine price is the smallest number on the page.
Cost Component | Share of Total Cost | Annual Cost (500t output) | What Most Factories Track |
|---|---|---|---|
Raw Material | 68–76% | $425,000–$575,000 | Total kg purchased — but rarely kg per kg of finished film |
Energy (Electricity) | 8–12% | $18,000–$28,000 | Monthly bill total — rarely kWh per kg produced |
Labor | 6–10% | $14,000–$24,000 | Monthly payroll — but not kg output per operator-hour |
Scrap / Waste | 3–7% | $8,000–$35,000 | Almost never tracked per product change or startup event |
Maintenance & Spare Parts | 3–5% | $6,000–$12,000 | Repair invoices — but not downtime cost of each failure |
Source: Based on Sunplas factory audit data collected from 120+ blown film installations across 14 countries, 2020–2025. Energy share varies by region: factories in markets with electricity above $0.12/kWh (e.g., parts of West Africa, South Asia grid-power) see energy reaching 14–16% of total cost.
Raw material dominates. That means a 10% improvement in raw material efficiency saves more money than eliminating your entire electricity bill. This is the single most important number in blown film economics — and most factory owners do not know it.
This is the largest single cost lever in blown film production. Virgin LDPE resin traded at $1,050–$1,250 per ton in Q1 2026 (Asia ex-works). Clean post-industrial recycled LDPE costs $550–$750 per ton — a gap of $400–$600 per ton. For a factory running 500 tons per year with 30% recycled PE in the core layer, that is $60,000–$90,000 in direct material savings.
The key enabler is a 3-layer ABA blown film machine. The recycled material runs in the B (core) layer, sandwiched between two virgin PE skin layers. The film surface — the part your customer sees, touches, prints on, and heat-seals — is 100% virgin LDPE or LLDPE. The recycled content never contacts the product.
Plastics Technology reported in its 2025 Global Film Extrusion Benchmark that post-industrial recycled PE content in 3-layer blown film has reached an average of 28% across Asian packaging converters, up from 14% in 2020. The technology is mature. The quality results are proven.
Anti-sell: Recycled PE is not right for every product. If your customer specification mandates 100% virgin resin — particularly for food-contact primary packaging under FDA or EU 10/2011 compliance — do not use post-consumer recyclate. Post-industrial recyclate from known, controlled sources is sometimes acceptable even in food applications, but verify with your customer's compliance department first.
I estimate that more than 50% of blown film extruders in small and mid-size factories are running the wrong screw — specifically, a general-purpose 28:1 L/D PE screw that the machine supplier shipped as standard, regardless of what the customer actually processes. Based on our installation data, this single mismatch is responsible for 8–15% excess energy consumption and a measurable increase in melt-temperature variation that drives gauge inconsistency and scrap.
If your core layer runs recycled PE at 20% or higher, ask your screw supplier for a barrier screw with an L/D ratio of at least 30:1 — Maddock or Barr type mixing section. Recycled PE has a wider molecular weight distribution than virgin resin. A barrier section separates the melt pool from the solid bed, ensuring only fully molten polymer reaches the metering zone. The result: melt-pressure variation drops from ±10–12% to ±3–5%, and specific energy consumption drops 12–18%.
Unlike a general-purpose screw, which treats all PE grades as interchangeable, a barrier screw is designed for the specific melting behavior of post-industrial recyclate.
A factory in Nairobi tracked the numbers: general-purpose 28:1 screws on 55mm extruders consumed 0.38 kWh/kg across shifts. After switching to barrier screws, they measured 0.31 kWh/kg — an 18.4% reduction. At 6,000 operating hours and 140 kg/h, that is 58,800 kWh saved per year. At $0.14/kWh (Kenya industrial rate in 2025), that is $8,232 saved annually — on a $4,200 screw upgrade. Payback: 6.1 months.
Scrap rate is the most under-measured number in blown film production. Factories that tell me "our scrap rate is about 3%" typically measure it at 5–7% when we install a simple weigh-scale log at the winder and reconcile finished roll weight against raw material consumption.
The largest scrap events are predictable:
Product changeovers: 6–25 kg of off-spec film per transition depending on material change, die gap adjustment time, and operator skill
Startup after shutdown: 8–18 kg before bubble stabilizes and gauge profile settles
Gauge variation drift: 2–5% of total output if thickness control is manual and operators check only once per shift
A 3-layer ABA line producing 140 kg/h that runs 3 product changes per day, 300 operating days per year, with average 10 kg scrap per changeover, generates 9,000 kg of changeover scrap annually — worth $9,000–$11,000 at virgin resin prices.
The fix is procedural, not mechanical:
Standardize startup sequence: written checklist at each extruder — barrel temperature stabilization confirmed by soak time, not just setpoint display; die gap verified with feeler gauge before each product run
Log scrap per event: simple hanging scale at the winder, operator records weight of startup film before the first good roll — what gets measured gets managed
Reduce unnecessary changeovers: batch same-gauge, same-material orders together; run wider film and slit to size rather than changing die gap for each width
Unlike raw material savings, which require capital investment in an ABA line, scrap reduction costs almost nothing to implement — it is pure process discipline.
Internal bubble cooling (IBC) increases output by 18–25% on the same extruder setup by pulling heat from inside the bubble — doubling the cooling surface area. For a line running at 120 kg/h, IBC raises output to 142–150 kg/h without increasing extruder speed. The electricity cost per kilogram drops because the extruder and die heaters run at nearly the same kW while output increases.
On the motor side: if your machine is more than 8 years old and running standard AC motors with belt drives, upgrading to direct-drive permanent magnet synchronous motors (PMSM) with VFD control reduces extruder drive energy consumption by 12–18%. A 55mm extruder drawing 22 kW on an old AC motor typically draws 18–19 kW on a PMSM at the same screw speed and output.
The combined effect of IBC + motor upgrade: a line producing 500 tons/year can save 48,000–72,000 kWh annually. At $0.12/kWh, that is $5,760–$8,640 per year.
Anti-sell: IBC is not cost-effective below 80 kg/h output. The blower, piping, and control system add $4,500–$7,000 to machine cost. At 60 kg/h, the payback stretches beyond 3 years. For small-die, low-output lines, external air ring optimization (dual-lip air ring with proper gap setting) delivers most of the benefit at a fraction of the cost.
Manual material feeding and manual roll change create two costs: direct labor and inconsistency. An operator who spends 40 minutes per shift hauling resin bags, cutting open sacks, and pouring material into hoppers is not watching the bubble. The bubble drifts. Gauge variation increases.
Automated vacuum loading systems with 3–5 hopper stations cost $4,500–$8,000 installed and typically pay back within 12–18 months through:
Eliminating 1.5–2 operator-hours per shift of material handling labor
Reducing contamination risk from manual bag opening (dirt, dust, bag fragment ingress)
Consistent hopper levels → consistent melt pressure → reduced gauge variation
On the winding side: automatic surface winders with flying knife roll change eliminate the 3–8 kg of scrap per manual roll change and enable continuous operation at full line speed. The labor saving is one less operator per shift on multi-line floors. A factory running 4 lines that automates winding frequently redeploys 2 operators to quality inspection and maintenance — higher-value work — rather than headcount reduction.
Every hour of unplanned downtime on a blown film line costs $250–$600 in lost contribution margin, depending on output and product value. Yet the typical small factory runs machines until something breaks.
A preventive maintenance schedule that costs $2,800–$4,200 per year in planned parts and labor prevents roughly 60–80% of unplanned failures. Based on our service records across Sunplas-installed lines, the factories that follow a scheduled PM program average 12–18 hours of unplanned downtime per year. Factories that run-to-failure average 40–70 hours.
The non-negotiable PM items:
Screw and barrel inspection: every 1,200 operating hours — measure screw flight OD and barrel ID for wear. A screw worn 1.5mm undersize on the flight OD loses 8–15% output at the same RPM and increases specific energy consumption by 10–18%
Gearbox oil change: every 2,000 hours with oil analysis report — a gearbox failure on a blown film extruder costs $8,000–$18,000 to replace and typically involves 3–5 days of downtime
Die lip inspection: monthly — a nick or burr on the die lip creates a permanent gauge band. Polishing takes 45 minutes; ignoring it creates 2–5% scrap continuously
Heater band resistance check: quarterly — a single failed heater band creates a cold spot in the barrel, causing unmelt and visible film defects that can take 2–3 shifts to diagnose
Unlike reactive repair, which interrupts production at the worst possible moment, scheduled PM is done when the line is already down for a product change or weekend — zero additional downtime.
The most expensive mistake I see in blown film procurement is overbuying — a 1,600mm die and 80mm extruder to produce 800mm-wide shopping bag film at 90 kg/h, when a 1,200mm die and 65mm extruder would produce the same output at 18% lower energy consumption and $30,000 lower purchase price.
The second most expensive mistake is underbuying — a 45mm extruder pushed to its thermal limit because the factory's order book grew and the machine was never sized for the actual output now required. Running any extruder above 85% of its maximum screw RPM continuously accelerates screw and barrel wear by a factor of roughly 2×.
Anti-sell: Do not buy a bigger machine "for future growth" unless that growth is contractually committed within 18 months. A machine running at 55–75% of its rated output operates in its efficiency sweet spot. A machine running at 35% of rated output wastes energy heating a barrel sized for twice the throughput. I have seen too many factories pay for capacity that never materialized.
When specifying your next line, ask the supplier for the specific energy consumption curve (kWh/kg) across the full output range — not just the single-point rating. The shape of that curve tells you where the machine is efficient and where it is not.
The Dhaka manufacturer I mentioned at the start of this article implemented four of these seven methods over an 8-month period in 2025. Here is what changed.
Metric | Before (Jan 2025) | After (Sep 2025) | Change |
|---|---|---|---|
Raw material cost per kg of finished film | $1.18 | $0.94 | −20.3% |
Energy consumption (kWh/kg) | 0.41 | 0.32 | −22.0% |
Average scrap rate | 6.8% | 2.4% | −4.4 pp |
Downtime hours (unplanned) | 58/year | 14/year | −76% |
Total production cost per kg | $1.47 | $1.15 | −21.8% |
What they implemented: Method 1 (recycled PE in core layer on a new Sunplas ABA 3-layer line), Method 2 (barrier screws on all three extruders), Method 3 (scrap logging and standardized changeover procedure), and Method 6 (preventive maintenance schedule). Total capital investment: $52,000 for the new ABA line plus $4,200 for barrier screws. Total annual savings: $128,000. Payback period: 5.3 months.
When you implement cost-reduction methods that depend on machine capability — particularly ABA 3-layer co-extrusion and barrier screw configuration — the machine supplier's engineering depth determines whether the numbers in this article become real on your factory floor or remain theoretical.
20+ years manufacturing blown film equipment. Sunplas has produced film blowing machines since 2003 from a 12,000m² factory in Ruian, Zhejiang — one of China's largest plastics machinery manufacturing clusters. The engineering team includes dedicated screw design engineers who match L/D ratio, compression ratio, and mixing section geometry to your actual raw material, not a generic specification sheet.
CE-certified, exported to 40+ countries. Sunplas machines carry CE certification and are running in factories across Southeast Asia (Indonesia, Vietnam, Thailand, Philippines), South Asia (Bangladesh, India, Pakistan), Africa (Nigeria, Kenya, Ghana, Ethiopia, South Africa), the Middle East (UAE, Saudi Arabia, Egypt), and South America (Colombia, Peru, Ecuador). This export footprint means the machines are designed for diverse voltage standards, climate conditions, and operator skill levels — not just the Chinese domestic market.
2,000+ spare parts SKUs in warehouse, 48-hour dispatch. The most common barrier to implementing preventive maintenance is parts availability. Sunplas maintains a spare parts warehouse in Ruian with 48-hour dispatch on critical items — screws, barrels, gearboxes, heater bands, VFD drives, and die head components. For customers in Southeast Asia and South Asia, air-freight delivery of critical spares typically lands within 5–7 working days.
Every machine undergoes a full-day FAT with customer's actual raw materials. Before crating, each Sunplas machine runs a 4+ hour factory acceptance test using the specific material formulation you will use in production — not an optimized demo resin. Melt pressure, melt temperature, output rate, film thickness profile (12-point measurement), and power consumption are recorded every 15 minutes and included in the machine documentation package.
On-site commissioning and operator training included. A Sunplas service engineer spends 7–12 days at your factory for installation, commissioning, and hands-on operator training — covering startup/shutdown procedure, material changeover sequence, die gap adjustment, temperature profile optimization for your specific materials, and basic troubleshooting. Training is conducted on your production materials, not a demo formulation.
Switching core-layer material from virgin PE to recycled PE on a 3-layer ABA blown film line. At current resin prices (Q1 2026: virgin LDPE ~$1,100–$1,250/ton, clean post-industrial recycled PE ~$550–$750/ton), running 30% recycled PE in the core saves $60,000–$90,000 per year for a 500-ton factory. Payback on the ABA machine upgrade is typically 5–8 months from material savings alone, based on our installation data.
Based on Sunplas factory audits across 120+ installations, the average factory can reduce total production cost per kilogram by 18–28% by implementing a combination of recycled PE usage, screw configuration optimization, scrap rate reduction, and preventive maintenance. The exact number depends on starting scrap rate, current energy consumption, and whether the factory already uses an ABA configuration.
Yes — when used in the core layer of a 3-layer ABA film, with virgin PE skins. In blind comparison tests conducted by one of our supermarket-chain customers, ABA film with 35% post-industrial recycled PE core showed no measurable difference in tensile strength, dart drop impact, or heat seal strength versus 100% virgin mono-layer film. The virgin skins handle all product-contact, print, and seal surfaces. Recycled content is buried in the core where it never touches the product.
Roughly 80 kg/h. Below 80 kg/h, the IBC system cost ($4,500–$7,000) amortizes over too few kilograms to deliver payback within a reasonable period. For lines running 50–80 kg/h, a dual-lip air ring upgrade ($800–$1,500) with proper gap adjustment delivers 70–80% of the cooling improvement at 20–25% of the cost.
Every 1,200 operating hours — approximately every 2 months for a factory running 24/6. The inspection measures screw flight outside diameter at 3–5 points along the screw length using a micrometer. A screw worn more than 1.0mm undersize on the flight OD should be scheduled for reconditioning or replacement. Continuing to run a worn screw costs more in lost output and excess energy than the reconditioning cost within 3–4 months.
A typical 55mm single-extruder mono-layer line producing 100 kg/h draws 35–45 kW total (extruder motor + barrel heaters + die heaters + winder + air ring blower + corona treater). A 3-layer ABA line with 55/65/55mm extruders producing 130 kg/h draws 42–50 kW. At $0.12/kWh and 6,000 operating hours per year, annual energy cost is $25,000–$36,000 — which exceeds the machine purchase price over an 8-year service life. This is why energy efficiency upgrades (barrier screws, IBC, PMSM motors) pay back quickly.
The program itself costs $2,800–$4,200 per year in planned parts, oil, and scheduled labor. The savings come from avoided unplanned downtime — typically 28–52 fewer downtime hours per year, worth $7,000–$31,000 in recovered production contribution margin depending on output and product value. Net payback is essentially immediate: the first major failure prevented more than covers the annual PM cost.
Partially. Scrap reduction through startup discipline and standardized changeover procedures (Method 3) and preventive maintenance scheduling (Method 6) work on any machine, regardless of age. Screw upgrades (Method 2) are retrofittable to most extruders built in the last 15 years — the barrel bore and drive coupling are typically standard. IBC retrofits (Method 4) are possible on machines with a die head designed to accept an IBC stack. Recycled PE in the core layer (Method 1) requires a 3-layer ABA or ABC machine — if you are currently running a mono-layer line, this requires a machine upgrade. Based on our installation data, mono-layer to ABA is the highest-ROI single investment in blown film production.

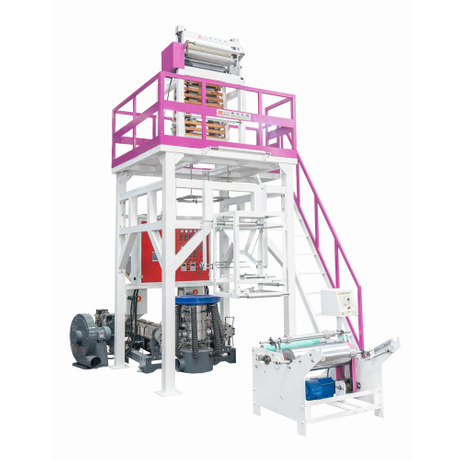

ABA 3-Layer Film Blowing Machine — Machine specifications, output data, and recycled PE processing capability for Sunplas ABA series
ABA vs ABC Film Blowing Machine: Choosing the Right 3-Layer System (2026) — Detailed comparison of ABA and ABC configurations with cost breakdown by application
How to Choose Screw Configuration for Blown Film Extruders — Barrier screws, L/D ratios, compression ratios, and material-specific recommendations
Recycled PE Film Production Guide — Post-industrial and post-consumer recyclate processing: material handling, filtration, and quality control
Film Blowing Machine Energy Cost Analysis — Full lifetime energy cost breakdown with kWh/kg benchmarks across machine types and regions
Mono-Layer vs ABA Film Blowing Machine: Total Cost Comparison (2026) — When upgrading from mono-layer to ABA pays back and when it doesn't
Send us your current production parameters. Within 1 business day, I will send you a 4–6 page Cost Reduction Plan with specific savings estimates for each of the 7 methods applied to your factory — machine configuration recommendation, estimated output gain, energy reduction projection, material cost saving calculation, and payback timeline for each recommended investment.
What to include in your message:
Your current machine type (mono-layer / ABA / ABC) and extruder sizes (mm)
Film products you produce (type, width range, thickness range)
Monthly output in tons
Raw materials currently used (virgin PE grade, any recycled %)
Your local electricity rate (USD per kWh)
Your approximate current scrap rate (% of raw material that does not become finished film)
Your location (city/country — for energy pricing, freight, and voltage reference)
Contact: carrie@jymingyang.com | +86-189-6169-1127
Author: Carrie, Technical Sales Engineer at Jiangyin Mingyang Packaging Machinery Co., Ltd. 8+ years experience in blown film extrusion equipment specification, export documentation, and packaging production consulting for customers in Southeast Asia, the Middle East, Africa, and South America.
