Quick Answer

The right ABA film blowing machine starts with your film product, not the machine specification. For most packaging converters, a 55/65/55mm extruder configuration with a 1,200mm die and IBC cage hits the sweet spot — producing 120–150 kg/h at 0.30–0.35 kWh/kg, with the ability to run up to 40% recycled PE in the core layer. The three decisions that determine whether your machine makes money or loses it are: screw design for your actual raw material, die head size matched to your film width range, and whether you need IBC at your output level. Get these three right before negotiating price — a $4,000 saving on purchase price evaporates in under six months of running the wrong screw.

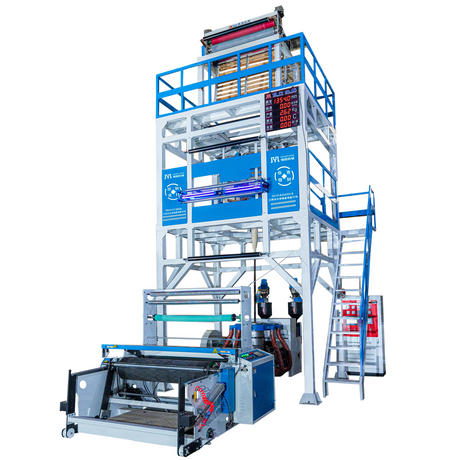

How To Choose the Right ABA Film Blowing Machine for Your Factory (2026 Guide)

Three years ago, a shrink film producer in Ho Chi Minh City ordered an ABA 3-layer line with 45/55/45mm extruders and an 800mm die. His reasoning was straightforward: the smaller machine was $9,000 cheaper, and his order book at the time averaged 85 kg/h output. Eighteen months later, he was running the extruders at 92% of maximum screw RPM for 18 hours a day — trying to keep up with orders that had grown 40%. Screw and barrel wear accelerated. Energy per kilogram climbed. Scrap from gauge variation increased because the small die was running at the edge of its stable operating window to hit the wider film widths his new customers demanded.

He replaced the line with a properly sized 55/65/55mm, 1,200mm die configuration last year. His first comment after the new line stabilized: "I should have spent the extra $9,000 the first time. The small machine cost me more in two years of excess energy and scrap than the price difference."

I work with blown film converters across Southeast Asia, Africa, and the Middle East. I have seen versions of this story — underbuying that starves growth, overbuying that wastes capital on unused capacity — play out dozens of times. This guide exists to make sure you get the configuration right the first time.

Step 1 — Start With Your Film Product, Not the Machine

The machine exists to serve the product. Not the other way around. Yet most buyers start their search by comparing extruder diameters and output ratings across supplier catalogs. This is backwards.

Before you look at a single machine specification, answer these five questions on paper:

If you cannot answer all five questions with specific numbers — widths in millimeters, output in tons per month, electricity in USD per kWh — do not contact a machine supplier yet. The suppliers who will give you the best configuration are the ones who ask these questions before quoting a price. The suppliers who quote a price without asking these questions are the ones who ship a standard machine and hope it works.

Step 2 — Choose Your Extruder Configuration (The Decision That Determines Everything)

The extruder configuration — the diameter of each screw and the power behind it — is the single most important specification on an ABA film blowing machine. It determines your output ceiling, your material flexibility, your energy consumption, and the resale value of the machine.

Small Configuration: 45/55/45mm

When it is the right choice: Start-up operations, niche product lines under 300 tons/year, factories with severe space or power constraints. Output range: 60–90 kg/h with LDPE. Film width typically up to 800mm lay-flat with an 800mm die.

When it is a mistake: Any operation that expects to grow beyond 300 tons/year within 3 years. The 45mm extruders limit your recycled PE processing capability — a smaller screw diameter means less residence time for the wider-molecular-weight recycled material to melt uniformly.

Workhorse Configuration: 55/65/55mm

This is the configuration I recommend for roughly 70% of ABA buyers I work with. Output range: 120–150 kg/h. Film width up to 1,500mm lay-flat with a 1,200mm die at BUR 2.0–3.0:1. The 65mm core extruder provides enough residence time to process recycled PE at up to 40% without melt-quality compromise. Energy consumption: 0.30–0.35 kWh/kg at steady state.

This configuration hits the economic sweet spot: output high enough to serve mid-size packaging converters (300–700 tons/year), capital cost manageable ($48,000–$58,000 ex-works from established Chinese manufacturers as of Q1 2026), and operator skill requirement moderate — a technician with 6–12 months of blown film experience can run it competently after a week of commissioning training.

High-Output Configuration: 65/80/65mm

When it is the right choice: Factories running above 700 tons/year, wide-width film (1,500–2,200mm lay-flat), or heavy-gauge applications (80–150 microns). Output range: 180–240 kg/h. Requires a 1,600mm or larger die, IBC, and a more robust winding system rated for wider, heavier rolls.

When it is overkill: If your monthly output is under 60 tons, a 65/80/65mm line will run at 40–55% of its rated output — below the efficiency sweet spot. The barrel heaters and die heaters consume nearly the same kW regardless of output, so specific energy consumption (kWh/kg) climbs. Capital cost is 30–45% higher than the workhorse configuration, and the larger die is less forgiving at narrow width settings.

Extruder Configuration Comparison

Source: Output and energy data based on Mingyang factory test records from ABA machine installations across Southeast Asia and Africa, 2022–2025. Energy figures assume LDPE at MI 2–4, die gap 1.5mm, BUR 2.5:1, with IBC active.

Step 3 — Die Head Size and IBC: The Output Multiplier Decision

Die head diameter is not a "bigger is better" decision. The die must match your film width range and your extruder output. An oversized die run at low output produces film with poor gauge uniformity because the polymer residence time in the spiral channels is too long, leading to degradation at the channel walls while the main flow path runs cool.

Die Sizing Rule

Calculate backwards from your film product:

1. Maximum lay-flat width needed (mm) ÷ 3.14 ÷ typical BUR (2.0–3.0 for LDPE) = minimum die diameter

2. Example: 1,500mm lay-flat ÷ 3.14 ÷ 2.5 = 191mm. A 200mm die is the absolute minimum. A 250mm die provides operating margin.

3. But also: die diameter should produce bubble diameter that is 1.5–3.5× the die diameter. Running below 1.5× BUR on a too-large die produces unstable bubbles and poor gauge profile.

IBC: When the Numbers Justify It

Internal bubble cooling adds 18–25% output at the same extruder speed by doubling the cooling surface area — cooling from inside the bubble as well as outside. The system costs $4,500–$7,000 as a factory option.

The breakeven math: At 100 kg/h output and 6,000 operating hours per year, IBC adds roughly 20 kg/h — or 120 tons of additional annual output on the same extruders. At a contribution margin of $180–$250 per ton of finished film (typical for general-purpose PE packaging bags in competitive markets), the IBC system generates $21,600–$30,000 in additional annual contribution. Payback: 3–4 months.

At 60 kg/h output, IBC adds roughly 12 kg/h — 72 additional tons per year, or $12,960–$18,000 in additional contribution. Payback stretches to 6–10 months — still positive, but less urgent.

Anti-sell: If your output stays below 80 kg/h consistently, skip IBC. A properly adjusted dual-lip air ring delivers 70–80% of the cooling improvement at 20% of the cost. The money is better spent on barrier screws or a better winding system.

Step 4 — Screw Design: The Specification Nobody Checks (But Should)

In my experience auditing blown film factories, the single most common configuration error is running a general-purpose screw on material it was not designed for. The machine supplier ships a standard 28:1 L/D PE screw. The customer runs recycled PE in the core at 30%. Melt-pressure variation climbs to ±10–12%. Film thickness bands appear. Output drops because the operator slows the line to compensate. Nobody traces the problem back to the screw.

Screw Specification by Material

Unlike virgin PE, which melts within a narrow temperature band, recycled PE contains polymers with molecular weights spanning a 5–10× range. A barrier screw separates the already-melted fraction from the still-solid pellets, ensuring only fully molten polymer reaches the metering zone. The result is melt-pressure stability within ±3% — the difference between film your customer accepts and film they reject.

Question to ask any supplier: "What L/D ratio and screw type do you recommend for my specific core-layer material? Why?" If the answer is "our standard screw works for everything," find another supplier. Screws are material-specific. There is no universal screw that works efficiently across virgin LDPE, recycled PE, and filled compounds.

Step 5 — Calculate the Real Cost: Purchase Price Is the Smallest Number

Machine price is the question every buyer asks first. It is the least important cost number on the page.

Over an 8-year service life for a 500-ton-per-year ABA line, the total cost of ownership breaks down approximately as follows, based on Mingyang's installation data and Plastics Technology's 2025 blown film operating cost benchmarks:

The machine is roughly 1% of your total 8-year cost. Obsessing over a $4,000 price difference between two suppliers while ignoring the screw design that will cost or save you $40,000 in energy over 8 years is the most expensive negotiating tactic in blown film.

Every $1 saved on raw material — through recycled core content, through lower scrap, through better gauge uniformity that reduces over-consumption of resin to meet minimum thickness — is worth roughly $6 in machine price savings. Let that ratio guide your priorities.

Real Case: ABA Configuration for a Growing Shrink Film Producer in Ho Chi Minh City

The shrink film producer from the opening story eventually got it right. After two years of struggling with the undersized 45/55/45mm line, Mingyang supplied a 55/65/55mm ABA machine with a 1,200mm die, IBC cage, and barrier screws on all three extruders. The machine was commissioned in March 2024.

Total annual cost reduction versus the old line: $94,000. Machine payback: 6.2 months. The owner's only regret, in his words: "I waited two years too long."

Why Buyers Choose Mingyang ABA Film Blowing Machines

When you are investing $48,000–$85,000 in an ABA 3-layer line — a machine that will run 6,000 hours per year for 10–15 years — the supplier's engineering depth, quality control, and after-sales support determine whether your investment pays back on schedule or disappoints.

20+ years manufacturing blown film equipment. Mingyang (Jiangyin Mingyang Packaging Machinery Co., Ltd.) has produced film blowing machines since 2003 from its production base in Jiangyin, Jiangsu. The engineering team includes dedicated screw design engineers who match L/D ratio, compression ratio, and mixing section geometry to each customer's actual raw material — not a generic specification sheet. This matters because, as detailed in Step 4, a screw mismatch costs more in wasted energy and scrap over 18 months than the screw itself costs to replace.

CE-certified, exported to 40+ countries. Mingyang machines carry CE certification and are running in factories across Southeast Asia, South Asia, Africa, the Middle East, and South America. This export footprint means every machine is designed for diverse voltage standards (220V/380V/440V, 50Hz/60Hz), climate conditions (ambient temperature from 5°C to 45°C, humidity from 30% to 95%), and operator skill levels.

2,000+ spare parts SKUs, 48-hour dispatch. The most common barrier to maintaining consistent film quality is parts availability. Mingyang maintains a spare parts warehouse in Jiangyin with 48-hour dispatch on screws, barrels, gearboxes, heater bands, VFD drives, temperature controllers, and die head components. For customers in Southeast Asia and South Asia, air-freight critical spares typically land within 5–7 working days.

Every machine undergoes a 4+ hour factory acceptance test with customer's actual raw materials. Before crating, each Mingyang ABA machine runs a full-day FAT using the specific material formulation you will use in production — not an optimized demo resin. Melt pressure, melt temperature, output rate, film thickness profile (12-point transverse measurement), and power consumption are recorded at 15-minute intervals and included in the machine documentation package. You receive the data before you receive the machine.

7–12 days on-site commissioning and operator training. A Mingyang service engineer stays at your factory for commissioning, installation supervision, and hands-on operator training. Training covers startup and shutdown procedure, material changeover sequence, die gap adjustment, temperature profile optimization for your specific materials, and basic troubleshooting — all conducted on your actual production materials.

What to Verify Before Ordering — From Any Supplier

Whether you choose Mingyang or another manufacturer, these verification steps protect you.

Factory Visit or Video FAT

If you cannot visit the factory in person, request a live video FAT — not a pre-recorded demo. Watch the machine run your target film gauge with your specified material formulation (if available) or a material as close as possible to your formulation. Ask the operator to perform a product changeover during the video. Watch how long it takes and how much scrap is generated.

Reference Check Within Your Region

Ask for contact information of at least two customers within 1,000 km of your location who bought a similar configuration within the last 24 months. Call them. Ask: "How long did commissioning take? Did output match the quoted specification with your actual material? How quickly were spare parts delivered when you needed them? Would you buy from this supplier again?"

Red Flags

• Supplier cannot provide a screw specification sheet showing L/D ratio, compression ratio, and mixing section type for each extruder

• Supplier quotes output without specifying the material, melt index, die gap, and BUR used to achieve that output

• Supplier recommends the same screw for all three extruders on an ABA line

• No local service technician or spare parts inventory within your country or region

• Warranty shorter than 12 months on gearbox, screw, barrel, and die head

• Supplier cannot explain the difference between a barrier screw and a general-purpose screw and when each is appropriate

FAQ

What is the difference between an ABA film blowing machine and a mono-layer machine?

An ABA machine uses three extruders feeding a single die to produce film with three layers: two identical skin layers (A) sandwiching a different core layer (B). A mono-layer machine uses one extruder making single-layer film. The ABA advantage: you can run recycled PE, CaCO₃-filled compound, or colored masterbatch in the core layer — buried between virgin PE skins — reducing raw material cost by 20–35% without affecting film surface quality. ABA machines cost roughly 60–80% more than equivalent-output mono-layer lines but typically pay back within 6–12 months from material savings alone.

How much does an ABA film blowing machine cost in 2026?

A complete ABA 3-layer line with 55/65/55mm extruders, 1,200mm die head, IBC cage, corona treater, and automatic surface winder costs approximately $48,000–$58,000 ex-works from established Chinese manufacturers (Q1 2026). Smaller configurations (45/55/45mm, 800mm die) range from $34,000–$44,000. High-output configurations (65/80/65mm, 1,600mm die) range from $68,000–$85,000. Freight, import duties, and local installation typically add 10–18% depending on destination.

How do I choose the right extruder size for my production?

Start with your required monthly output in tons. For outputs under 25 tons/month, 45/55/45mm is sufficient. For 25–60 tons/month — which covers the majority of mid-size packaging converters — 55/65/55mm is the sweet spot. Above 60 tons/month or for film widths exceeding 1,500mm lay-flat, step up to 65/80/65mm. Then verify with your material: if your core layer runs over 30% recycled PE, the core extruder L/D should be at least 30:1, which may influence the extruder size recommendation.

Do I need IBC (Internal Bubble Cooling) on my ABA machine?

If your target output exceeds 100 kg/h, yes — IBC pays back within 3–4 months through 18–25% higher output at the same extruder speed. Below 80 kg/h, a dual-lip air ring delivers most of the benefit at lower cost. Between 80–100 kg/h, the decision depends on your electricity rate: above $0.10/kWh, IBC's energy-per-kg reduction tips the calculation positive even at moderate output.

What screw L/D ratio should I ask for?

For virgin LDPE/LLDPE skin layers, 28:1 is standard and sufficient. For the core extruder running recycled PE, CaCO₃-filled compound, or HDPE, demand a minimum of 30:1 — and ideally a barrier screw with a Maddock or Barr mixing section. The longer L/D provides the residence time needed for wider-molecular-weight-distribution materials to melt uniformly. Based on Mingyang's test data, a 28:1 general-purpose screw running 35% recycled PE produces melt-pressure variation of ±10–12%; a 30:1 barrier screw running the same material holds ±3%.

How long does delivery and installation take?

Standard-configuration ABA machines ship in 30–45 days from order confirmation. Custom screw designs or non-standard die diameters add 10–15 days. Sea freight to major ports in Southeast Asia adds 8–15 days; to Africa or South America, 18–30 days. On-site installation, commissioning, and operator training takes 7–12 days from machine arrival to stable production. Total timeline from order to full production: 8–12 weeks for most destinations.

What is the typical energy consumption of an ABA film blowing machine?

A 55/65/55mm ABA line producing 130–140 kg/h draws approximately 42–50 kW total (extruder motors + barrel heaters + die heaters + IBC blower + air ring blower + winder + corona treater). At $0.12/kWh and 6,000 operating hours per year, annual electricity cost is roughly $30,000–$36,000. Over 8 years, this exceeds the machine purchase price. This is why screw design and motor efficiency — which directly affect kWh/kg — are financially more important than a $3,000–$5,000 difference in purchase price between suppliers.

Can I produce biodegradable or compostable film on an ABA machine?

Yes — with the correct screw and temperature profile. Biodegradable resins (PBAT, PLA blends, starch-based compounds) have narrower processing windows and lower thermal stability than PE. The screw must be designed for low-shear, low-temperature processing — typically a 25–28:1 L/D with a deeper compression ratio (2.2–2.8:1) and tighter temperature control (±2°C). Do not assume a standard PE screw will process biodegradable materials without modification. Discuss your specific biodegradable resin grade with the supplier's engineering team before finalizing the screw specification.
