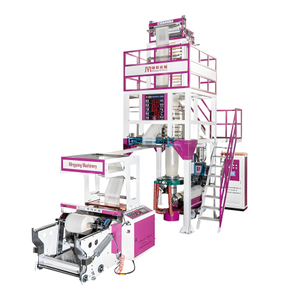

The HDPE ABA Film Blowing Machine is a core production device in the modern packaging industry, integrating advanced ABA co-extrusion technology to redefine plastic film manufacturing. Designed for processing high-performance materials such as HDPE, LDPE, and LLDPE (with CaCO3 filling compatibility), this machine delivers exceptional film quality while optimizing resource utilization. Equipped with a high-efficiency double screw extrusion system (max screw length-diameter ratio 32:1) and a servo motor drive, it achieves a maximum output of 200kg/hour, ensuring uniform plasticization and stable extrusion. Its innovative ABA structure enables recycled material integration in the middle layer, balancing cost-saving and environmental sustainability, making it an ideal choice for businesses seeking reliable, efficient, and eco-friendly film production solutions.
The Film Blowing Machine’s core ABA co-extrusion technology creates three-layer film structures (A/B/A), where the outer layers (A) guarantee strength and surface performance, and the middle layer (B) accommodates recycled materials. This design enhances film versatility, improving stretchability, tear resistance, and barrier properties for diverse packaging needs.
Crafted with 38CrMoALA+ALLOY screws and 38Cr barrels, the extrusion system boasts exceptional wear resistance and heat stability. The screw length-diameter ratio (up to 32:1) ensures thorough plasticization of raw materials, eliminating uneven melting and ensuring consistent film thickness (0.015-0.15mm).
Powered by a servo motor, the machine reduces energy consumption by 20% compared to traditional models. The precise speed control of the servo system also enhances film uniformity and winding stability, minimizing material waste.
Compatible with HDPE, LDPE, LLDPE, and CaCO3-filled composites, the HDPE ABA Film Blowing Machine adapts to various raw material requirements, supporting the production of packaging films for food, logistics, and agriculture.
Equipped with ceramic heaters (4-6 heating zones) and a dual-zone air cooling system, the machine maintains precise temperature control (up to 197°C) during extrusion, preventing film deformation and ensuring consistent quality.
Parameter | MYB-600 | MYB-1100 | MYB-1400 |
Material Suitable | HDPE+LLDPE+CaCO3 | HDPE+LLDPE+CaCO3 | HDPE+LLDPE+CaCO3 |
Max Film Width | 500mm | 1000mm | 1250mm |
Film Thickness | 0.015-0.15mm | 0.015-0.15mm | 0.015-0.15mm |
Dimension (L×W×H) | 5200×2500×4800mm | 5200×3000×5200mm | 5500×3300×6500mm |
Electric Source | 380V/50HZ (Local voltage adaptable) | 380V/50HZ (Local voltage adaptable) | 380V/50HZ (Local voltage adaptable) |
Screw Diameter (A/B) | 45mm/45mm | 50mm/50mm | 60mm/60mm |
Screw Material | 38CrMoALA+ALLOY | 38CrMoALA+ALLOY | 38CrMoALA+ALLOY |
Barrel Material | 38Cr | 38Cr | 38Cr |
Screw L/D Ratio | 30:1 | 30:1 | 32:1 |
Driving Motor Power (A/B) | 11KW/11KW | 15KW/15KW | 30KW/30KW |
Air Blower Power | 4kw | 5.5kw | 7.5kw |
Take Up Motor | Servo Motor | Servo Motor | Servo Motor |
Discharge Roll Mode | Manual Operation | Semi-Automatic | Automatic |
Optional Devices | Auto Loader, Corona Treatment, Mick Weight Controller, etc. | Auto Loader, Corona Treatment, Mick Weight Controller, etc. | Auto Loader, Corona Treatment, Mick Weight Controller, etc. |
Produces food-grade packaging films (e.g., grocery bags, fresh-keeping films) with safe, non-toxic properties and excellent barrier performance, protecting food from moisture and contamination.
Manufactures durable stretch films and packaging bags for securing goods during transportation, resisting tearing and abrasion.
Creates greenhouse films and mulch films with UV resistance and moisture retention, supporting crop growth and yield improvement. Supplies flexible packaging films for daily necessities (e.g., toiletries, textiles), featuring good printability and aesthetic appeal to enhance product competitiveness.
The ABA structure allows up to 50% recycled material in the middle layer, reducing raw material costs by 30% while maintaining film performance. Servo motor drive and ceramic heaters cut energy consumption by 20% vs. traditional machines, lowering long-term operational costs.
Simultaneous multi-layer extrusion and automatic discharge (for MYB-1400) boost production speed by 40%, meeting large-order demands. High-quality screws and barrels ensure stable operation for over 8,000 hours without major maintenance, reducing downtime.
It supports HDPE, LDPE, LLDPE, and CaCO3-filled composites. Recycled plastic particles can be added to the middle layer for cost savings.
The double screw extrusion system with precise temperature control and servo motor-driven winding ensures consistent film thickness (tolerance ±0.005mm).
Yes, the MYB-600 model (max width 500mm) is compact and cost-effective, ideal for small businesses or startups.
Yes, the electric source is customizable to local voltage (e.g., 220V/60HZ), with no additional modification required.
We offer 1-year warranty, on-site installation training, and 24/7 technical support to ensure smooth operation.
