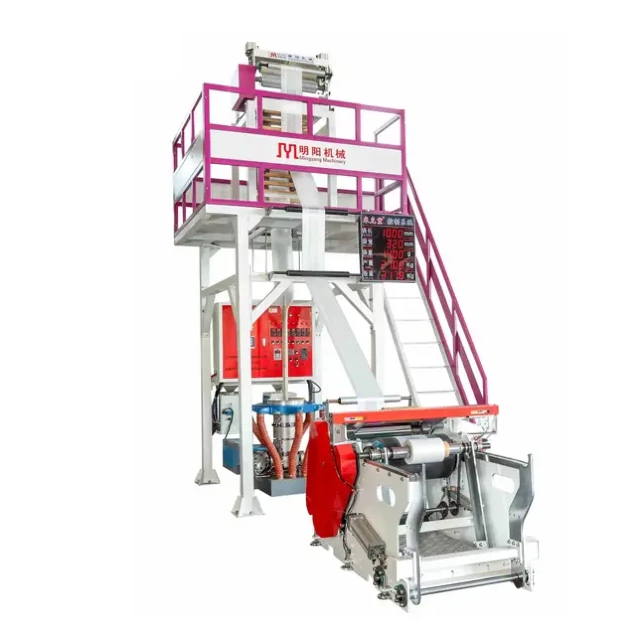

Equipped with a high-performance single-screw extrusion system, this machine excels in processing HDPE, LDPE, and LLDPE raw materials, along with CaCO3 blends, to produce high-quality tubular films. With a maximum output exceeding 100kg/h and a film thickness range of 0.008–0.2mm, it balances efficiency and versatility, making it a top choice for businesses entering or expanding in the plastic film industry. Its robust structure and intelligent design ensure consistent performance, while low maintenance requirements reduce long-term operational costs.
The machine’s single-screw design boasts a length-diameter ratio (L/D) of up to 32:1, paired with 38CrMoALA+ALLOY screw material and 38Cr barrel material. This combination enables rapid heating, compression, and melting of plastic granules, resulting in homogeneous melt and high plasticization efficiency—critical for uniform film formation.
Equipped with a state-of-the-art intelligent temperature control system and ceramic heaters, the machine maintains stable temperatures across multiple heating zones (4–6 zones depending on the model). This ensures uniform film thickness (0.008–0.06mm for standard models) and prevents defects, elevating end-product quality.
Featuring center/surface winding and in-line slitting capabilities, the machine supports single or multi-roll outputs in various widths (up to 1000mm). The torque motor for winding and servo motor for take-up guarantee smooth, tight rolls, reducing material waste during processing.
Designed for ease of use, the machine allows new operators to master operations quickly after basic training. Vulnerable parts are easily replaceable, and the air cooling system for the barrel ensures reliable performance with minimal downtime—lowering maintenance costs significantly.
Technical Parameters | MYB-600 | MYB-850 | MYB-1100 |
Suitable Materials | HDPE+LLDPE+CaCO3 | HDPE+LLDPE+CaCO3 | HDPE+LLDPE+CaCO3 |
Max Film Width | 500mm | 700mm | 1000mm |
Film Thickness Range | 0.008–0.06mm | 0.008–0.06mm | 0.008–0.06mm |
Dimensions (L×W×H) | 5000×2300×4500mm | 5500×2700×5200mm | 5500×3000×5500mm |
Power Supply | 380V/50HZ (Local voltage adaptable) | 380V/50HZ (Local voltage adaptable) | 380V/50HZ (Local voltage adaptable) |
Screw Diameter | 45mm | 55mm | 60mm |
Driving Motor Power | 11kw | 22kw | 30kw |
Die Head Material | 40Cr (Mirror Surface Treatment) | 40Cr (Mirror Surface Treatment) | 40Cr (Mirror Surface Treatment) |
Air Blower Power | 3kw | 4kw | 4kw |
Winder Type | Single Friction Winder | Single Friction Winder | Single Friction Winder |
Discharge Roll Mode | Manual Operation | Semi-Automatic | Automatic |
Ideal for producing garbage bags, shopping bags, and lightweight packaging films. Meeting the high-demand, cost-sensitive daily consumer market. The film’s flexibility and strength ensure reliable performance for everyday use.
Produces durable express bags with consistent thickness, protecting goods during transit. The machine’s fast output (up to 100kg/h) caters to the high-volume needs of logistics companies.
Suitable for manufacturing ordinary agricultural films (e.g., mulch films) that require weather resistance and uniform light transmission. The film’s stable structure ensures long-term use in outdoor environments.
With precise thickness control, the machine produces plastic wrap compliant with food contact standards. Safe for preserving fresh produce, snacks, and prepared meals.
Unbeatable Cost-Performance: Combines high output and low operational costs, perfect for SMEs with limited budgets.
Multi-Material Compatibility: Processes HDPE, LDPE, LLDPE, and CaCO3 blends, expanding production versatility.
Intelligent Quality Assurance: The temperature control system and precision die head guarantee consistent film quality, reducing rejection rates.
Rapid Onboarding: User-friendly design shortens training time, enabling quick production ramp-up.
Durable Construction: High-quality screw and barrel materials extend the machine’s service life, delivering long-term ROI.
It supports HDPE, LDPE, LLDPE, and blends with CaCO3, accommodating most common plastic film raw materials for diverse production needs.
Yes! The equipment features intuitive controls and simple operation. New users can start production independently after 1–2 days of training, supported by detailed user manuals.
Absolutely. The machine offers flexible adjustments for film width (up to 1000mm) and thickness (0.008–0.06mm), with in-line slitting to customize roll sizes for specific applications.
