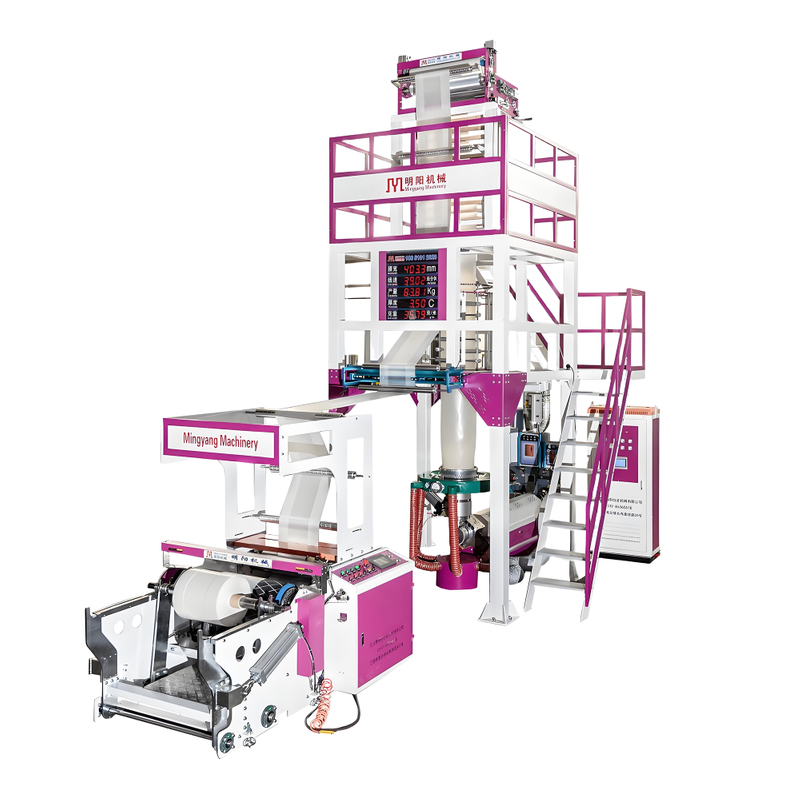

Mingyang biodegradable film blowing machine is meticulously engineered to address the requirements of eco-friendly film manufacturing. This innovative series of blown film machines integrates the functions of film blowing and printing, enabling seamless, continuous, and highly efficient production processes. By doing so, it equips your business with significant competitive edges in the market.
Films manufactured by this machine are fully amenable to decomposition by microorganisms in the natural environment, ensuring zero environmental pollution.
It accommodates a wide array of materials, including biodegradable plastics, starch-based substances, fiber-derived materials, hybrid composites, and other biodegrade plastics, offering you diverse options for production.
With substantial market demand, this machine presents excellent market prospects and ample room for development, making it a wise investment for businesses.
Mingyang biodegradable film blowing machine is meticulously engineered to address the requirements of eco-friendly film manufacturing. This innovative series of blown film machines integrates the functions of film blowing and printing, enabling seamless, continuous, and highly efficient production processes. By doing so, it equips your business with significant competitive edges in the market.
Films manufactured by this machine are fully amenable to decomposition by microorganisms in the natural environment, ensuring zero environmental pollution.
It accommodates a wide array of materials, including biodegradable plastics, starch-based substances, fiber-derived materials, hybrid composites, and other biodegrade plastics, offering you diverse options for production.
With substantial market demand, this machine presents excellent market prospects and ample room for development, making it a wise investment for businesses.
MYB-600 | MYB-850 | MYB-1250 | ||
TECHINCAL PARAMETERS | MATERIAL SUITABLE | LDPE+CaCo3 | LDPE+CaCo3 | LDPE+CaCo3 |
MAX FILM WIDTH | 500mm | 700mm | 1100mm | |
FILM THICKNESS | 0.015-0.15mm | 0.015-0.15mm | 0.015-0.15mm | |
DIMENSION | 5200*2500*4800mm | 5200*2700*5200mm | 5500*3000*5800mm | |
ELETRIC SOURCE | 380V/50HZ (Depends on local voltage) | 380V/50HZ (Depends on local voltage) | 380V/50HZ (Depends on local voltage) | |
EXTRUDER | SCREW DIAMETER | 50mm | 55mm | 60mm |
SCREW MATERIAL | 38CrMoALA+ALLOY | 38CrMoALA+ALLOY | 38CrMoALA+ALLOY | |
BARREL MATERIAL | 38Cr | 38Cr | 38Cr | |
SCREW L/D | 30:1 | 30:1 | 30:1 | |
HEATING MODE | CERAMIC HEATER | CERAMIC HEATER | CERAMIC HEATER | |
HEATING ZONE | 4 | 6 | 6 | |
BARREL COOLING ZONE | 2ZONE/250w | 2ZONE/250w | 2ZONE/250w | |
BARREL COOLING MODE | AIR COOLING | AIR COOLING | AIR COOLING | |
DRIVING MOTOR POWER | 15kw | 22kw | 30kw | |
GEAR BOX | ZLYJ173 | ZLYJ180 | ZLYJ200 | |
DIE HEAD MATERIAL | 40Cr MIRROR SURFACE TREATMENT | 40Cr MIRROR SURFACE TREATMENT | 40Cr MIRROR SURFACE TREATMENT | |
DIE SIZE (HD) | 100mm | 160mm | 200mm | |
AIR BLOWER POWER | 3kw | 4kw | 4kw | |
ROLLER WIDTH | 600mm | 850mm | 1250mm | |
TAKE UP MOTOR | SERVO MOTOR | SERVO MOTOR | SERVO MOTOR | |
WINDING MOTOR | TORQUE MOTOR | TORQUE MOTOR | TORQUE MOTOR | |
WINDER TYPE | SINGLE FRICTION WINDER | SINGLE FRICTION WINDER | SINGLE FRICTION WINDER | |
DISCHARGE ROLL MODE | MANUAL OPERATION | SEMI-AUTOMATIC | AUTOMATIC | |
OPTIONAL DEVICE | AUTO LOADER、CORONA TREATMENT、MICK WEIGHT CONTROLLER、QUICK SWITCH、ROTARY DIE、AUTO WINDER、ETC. | |||
