A twin head film blowing machine can help a PE film manufacturer increase production without installing two completely independent extrusion lines. However, buyers should not select equipment only by the number of die heads or the maximum output stated in a quotation.
A high speed twin die blown film machine must match the factory’s material, film specifications, order structure, available space, utilities, downstream process, and operator experience.
Before placing an order, buyers should confirm how the machine will perform under their actual production conditions and what equipment, services, and optional systems are included.
Machine selection should begin with the finished film.
The supplier needs to know whether the factory will process HDPE, LDPE, LLDPE, calcium-carbonate-filled material, recycled material, or another formulation. Different materials require suitable screw designs, temperature settings, die structures, and cooling conditions.
Buyers should also provide the required lay-flat width and thickness range for each head. A machine that performs well on narrow, thin HDPE film may need a different configuration for wider or thicker LDPE film.
The finished application matters as well. Shopping bag film, garbage bag film, packaging film, and industrial liner film can place different demands on strength, appearance, thickness control, winding, and downstream converting.
MINGYANG’s blown film machine range covers different film structures and production applications. Buyers should identify the most relevant equipment type before comparing individual models.
A high output figure is useful only when it is based on the buyer’s actual film.
Output changes with material, film width, thickness, cooling efficiency, extrusion stability, and winding speed. A machine may reach a high production rate with one specification but deliver less when producing a thinner film or a different PE grade.
Buyers should define hourly, daily, or monthly output requirements. They should also consider operating hours, planned maintenance, material changes, roll changes, and expected production losses.
When comparing quotations, ask each supplier to calculate output using the same film specifications. The proposal should clearly state the material, width, thickness, and operating conditions behind the estimate.
A twin-head machine is most valuable when both heads can remain in production. If the factory frequently runs small orders or stops one side, the installed capacity may not be used efficiently.
The extruder must provide sufficient, stable melt flow for both die heads.
Important factors include screw diameter, length-to-diameter ratio, screw material, motor power, gearbox capacity, heating method, and temperature-control accuracy. These specifications should be evaluated together rather than separately.
A larger motor does not automatically provide better film quality. The screw, barrel, gearbox, heaters, and cooling system must operate as a coordinated extrusion unit.
Buyers should ask whether the screw is designed for the intended PE material and whether the machine can maintain stable output across the required production range. If the factory plans to use fillers or recycled material, this should be discussed before the machine is configured.
The melt-distribution system is a key difference between a twin-head machine and a single-head line.
It divides the melt from the extruder and sends it to two die heads. If the flow paths are not balanced, one head may receive more melt or operate at a different pressure and temperature.
Before purchasing, ask the supplier how the distributor is designed and how operators can identify an imbalance. It is also important to understand how the component is disassembled and cleaned.
The two die heads should support the required film widths and thicknesses. Buyers should confirm the die material, die diameter, heating zones, temperature control, air-ring design, and available adjustments.
During a factory test, film from both heads should be measured separately. Similar settings should produce reasonably consistent output and film quality on both sides.
Extrusion capacity alone does not determine usable production speed. The film must also cool quickly and remain stable.
Each head requires suitable air-ring capacity and consistent airflow. If cooling is uneven, the two bubbles may develop different frost-line heights or thickness profiles.
The machine layout should provide enough distance between the film paths to reduce airflow interference. The buyer should also consider ventilation inside the factory because strong crosswinds can disturb bubble stability.
If high output is required, ask whether enhanced cooling, internal bubble cooling, or other cooling options are available and appropriate. Optional equipment should be selected according to the product rather than added simply because it appears advanced.
Although the two heads share an extrusion system, the downstream film paths should provide practical control for each film.
Buyers should confirm whether take-up speed can be adjusted independently. This is particularly important when the two heads produce different widths or when minor thickness corrections are required.
Winding quality also affects whether the film can move smoothly into printing or bag-making operations. Uneven tension, loose edges, telescoping rolls, or inconsistent roll hardness can create problems after extrusion.
The quotation should identify the winder type, winding motor, tension-control method, roll-removal method, and maximum finished-roll size.
For continuous high-volume production, automatic winding or faster roll-changing systems may reduce downtime. Smaller factories may prefer a simpler winding system that is easier to operate and maintain.
Automation can improve consistency, but each option should solve a clear production problem.
Possible configurations may include automatic material loading, gravimetric dosing, corona treatment, rotary dies, automatic winding, thickness monitoring, and additional temperature or pressure controls.
Corona treatment may be necessary when the film will be printed or laminated. Automatic loading can reduce manual material handling. Gravimetric dosing may improve formulation consistency when several additives are used.
Buyers should ask which options are included in the base price and which require additional investment. They should also confirm whether the control system, electrical components, and replacement parts are easy to support in the destination market.
A machine can only achieve stable production when the installation site supports it.
Before ordering, confirm the complete machine length, width, and height. The factory must have enough ceiling clearance for the tower and enough surrounding space for operators, maintenance, material handling, and roll removal.
The supplier also needs the local voltage, frequency, and number of phases. Buyers should determine whether a transformer, voltage stabilizer, or other electrical work will be required.
Compressed air, cooling water, ventilation, foundation requirements, and lifting access should also be checked. These items may not be included in the machine price but can significantly affect installation cost and schedule.
A site layout should be reviewed before production begins. Discovering that the tower is too high or the maintenance area is too narrow after shipment can be expensive to correct.
Film blowing machine quotations often look similar even when their technical scope is different.
A proper comparison should confirm the following items:
Quotation Area | What the Buyer Should Confirm |
|---|---|
Main machine | Extruder, two die heads, tower, take-up units, and winders |
Production scope | Material, film width, thickness, and estimated output |
Electrical system | Voltage, component brands, control method, and cabinet |
Cooling system | Air rings, blowers, and optional cooling equipment |
Winding | Winder type, tension control, and roll-changing method |
Optional equipment | Loading, dosing, corona treatment, rotary die, and automation |
Documentation | Drawings, manuals, wiring diagrams, and parts list |
Testing | Test material, test duration, film measurements, and acceptance criteria |
Delivery | Packaging, loading, shipping scope, and delivery time |
Service | Installation, commissioning, training, warranty, and remote support |
The cheapest quotation may exclude important equipment or services. Buyers should compare the complete installed solution rather than only the base machine price.
A reliable supplier should understand both machine construction and the film production process.
Buyers can ask for manufacturing information, machine-test procedures, electrical documentation, certification, quality-control records, and examples of similar equipment.
The supplier should also explain what happens after shipment. Installation guidance, commissioning, operator training, troubleshooting, and spare-parts support can affect how quickly the machine reaches stable production.
Working with an experienced film blowing machine manufacturer is particularly important for customized voltage, film sizes, automation, or material requirements. MINGYANG’s technical service covers common production and equipment questions.
The machine should be tested using material and film specifications that represent actual production.
The acceptance test should record film width, thickness, roll quality, operating stability, and output from each head. Both sides should be checked instead of evaluating only the combined production rate.
Buyers should also observe startup, temperature control, bubble adjustment, take-up operation, roll changing, alarm functions, and normal shutdown.
If optional equipment is included, it should be tested as part of the complete line. Any agreed acceptance criteria should appear in the purchase contract or technical agreement.

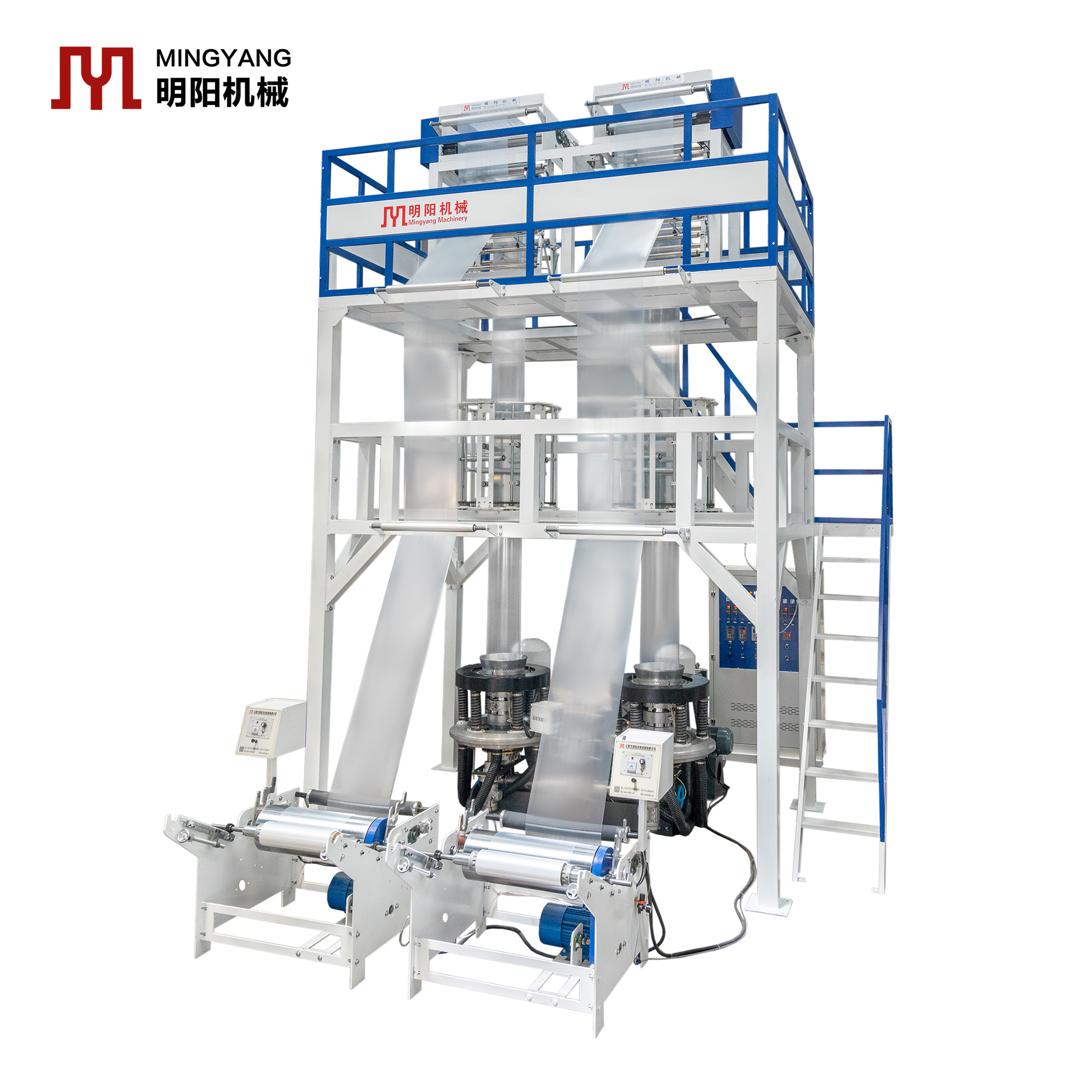

MINGYANG’s High-Speed Twin-Die PE Film Blowing Machine is designed for twin-head PE film production.
The product page identifies HDPE and LDPE applications, high-speed twin-head extrusion, automatic temperature control, and support for customized configurations. Available options can be selected according to the buyer’s film and automation requirements.
Before confirming this or another twin-head film blowing machine, buyers should send the supplier their real material, width, thickness, output, voltage, and factory information. This allows the machine to be configured around the production requirement rather than a general model description.
A detailed inquiry helps the supplier provide a more accurate configuration and price.
Include:
Primary material and formulation
Film width required from each head
Minimum and maximum film thickness
Finished film application
Required hourly or monthly output
Finished-roll diameter and weight
Downstream printing or bag-making requirements
Local voltage, frequency, and phases
Available factory dimensions
Required automation
Preferred delivery schedule
Installation and training requirements
If some details are not yet fixed, explain the expected product range. The supplier can then identify which specifications must be confirmed before manufacturing.
Buying a high speed twin die blown film machine requires more than comparing output and price.
The machine must match the material, film width, thickness, application, order structure, factory space, electrical supply, cooling conditions, winding requirements, and operator capability. Melt distribution, independent downstream control, documentation, testing, and after-sales service should also be reviewed.
A clearly defined production plan makes it easier to compare suppliers and avoid paying for unsuitable capacity or unnecessary options.
If you need a twin-head machine for HDPE or LDPE production, you can contact MINGYANG with your film specifications and factory conditions to request a suitable configuration and quotation.
Start with the material, film width, thickness, required output, finished application, and typical order size. These details determine the main machine configuration.
They may produce different widths within the machine’s adjustment range, but both heads normally share the same melt formulation when supplied by one extruder.
Ask suppliers to calculate output using the same material, width, thickness, and operating conditions. Avoid comparing unrelated maximum-output figures.
The answer depends on the product. Automatic loading, dosing, corona treatment, rotary dies, thickness control, and automatic winding should be selected according to actual production needs.
Yes. The test should check both film paths, film dimensions, roll quality, production stability, controls, alarms, and any optional equipment included in the order.
