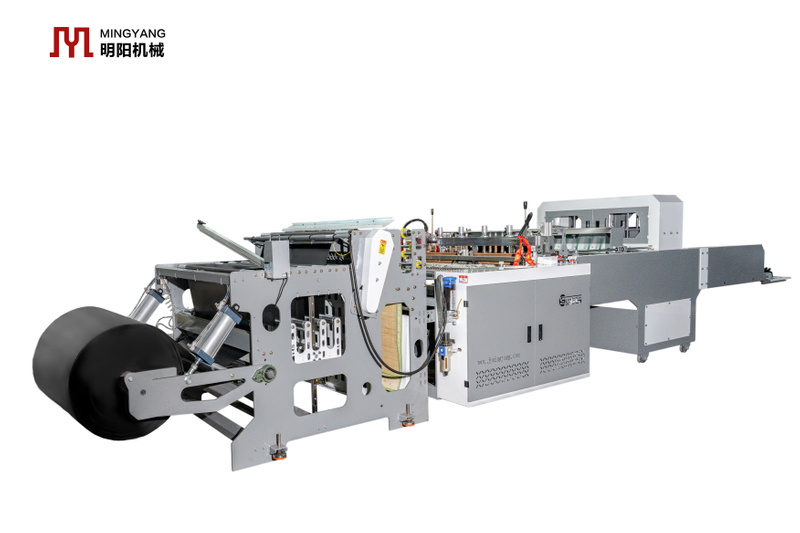

XSR-1200 Heat-Sealing Cold-Cutting Bag Making Machine Document

Machine Specifications

Max speed: 150 pcs/min

Max width: 1050 mm

Max length: 1500 mm

Film thickness: 0.02–0.2 mm

Total power: 18 KW

Dimensions: L 3.5 m × W 1.9 m × H 1.3 m

3. Main Components & Brands

7-inch touch screen: MCGS

PLC, main & servo motors: Ouxin

Feeding servo: Inovance

Material stop sensor: SICK (Germany)

Photoelectric sensor: Panasonic (Japan)

Main bearings: NSK (Japan)

Pneumatic parts: AIRTAC / SMC

Solid-state relay: FOTEK (Taiwan)

Temperature controller: Yatai

Electrical parts: CHINT

4. Folding Unit (Optional)

Max folding speed: 6 pcs/min

Max folding width: 1050 mm

Max folding length: 1500 mm

Power: 5 KW

Dimensions: L 4.5 m × W 1.65 m × H 1.7 m
