Quick Answer
Virgin PE wins on quality and consistency. Recycled PE wins on cost — by $400–$600 per ton. For most non-food blown film applications, the optimal strategy is neither 100% virgin nor 100% recycled: it is a hybrid using an ABA 3-layer machine, with virgin PE skins for surface quality, seal strength, and print adhesion, and 30–40% recycled PE in the buried core layer for material cost savings of $75,000–$180,000 per year at 500 tons output. Recycled PE film retains 90–98% of virgin tensile and seal strength at up to 40% core content, but loses clarity (+1.5–3.0 haze points), gains visible gels (3–10 per m² versus 0–1 for virgin), and shows batch-to-batch mechanical property variation of ±8–15% versus ±2–3% for virgin. Choose 100% virgin when your customer specification or regulation demands it. Choose the ABA hybrid when you control your film surface quality and need to compete on price. Choose 100% recycled only for thick-gauge, low-clarity, non-structural applications.
A packaging converter in Lagos was facing a decision that thousands of factory owners face every year. His raw material cost — virgin LDPE at $1,180/ton delivered — consumed 73% of his total operating cost. A recycled PE supplier offered post-industrial LDPE regrind at $620/ton. The price difference: $560 per ton. At his output of 420 tons per year, switching entirely to recycled would save $235,200 annually — more than his net profit margin in the previous year.
He asked me a question I hear frequently across the 120+ blown film factories I work with: "If recycled PE is so much cheaper, why isn't everyone using it for everything?"
The answer is in the data. Recycled PE is not a cheaper version of virgin PE. It is a different material with a different performance profile, a different set of failure modes, and a different set of applications where it makes economic sense. This article provides the numbers you need to decide which material belongs in which layer of your film — and when to pay the virgin premium.
Virgin LDPE is polymerized from ethylene gas in a reactor under precisely controlled temperature, pressure, and catalyst conditions. Every pellet has the same molecular weight, the same branching structure, the same melt flow behavior, and the same additive package. Virgin PE is an engineered material. Recycled PE is a recovered material. The difference is not philosophical — it is measurable in every property that matters for blown film production.
Property | Virgin LDPE (Film Grade) | Post-Industrial Recycled PE | Post-Consumer Recycled PE |
|---|---|---|---|
Melt Index (g/10min, 190°C/2.16kg) | 2.0 ± 0.2 | 1.5–2.8 (wider range) | 0.8–3.2 (highly variable) |
Density (g/cm³) | 0.920–0.925 | 0.918–0.928 | 0.915–0.940 (HDPE/PP traces) |
Molecular weight distribution | Narrow (Mw/Mn ≈ 3–5) | Moderate (Mw/Mn ≈ 4–8) | Broad (Mw/Mn ≈ 6–15) |
Heat history (extrusion cycles) | 0 (virgin polymerization) | 1–2 (original extrusion + repelletizing) | 2–4 (original + recycle + repelletizing) |
Non-PE contamination (%) | <0.05 | 0.1–0.5 | 0.5–2.0 |
Gel potential (visible gels/m² at 35μm) | 0–1 | 2–8 | 5–25+ |
Batch-to-batch consistency | ±2–3% on key properties | ±8–12% on key properties | ±15–25% on key properties |
Price (Q1 2026, Asia ex-works, $/ton) | $1,050–$1,250 | $550–$750 | $400–$650 |
Source: Virgin PE specifications from major Asian resin producers (Sinopec, Petronas, PTT Global Chemical) Q1 2026 price sheets. Recycled PE data from Mingyang's incoming material quality logs across 120+ blown film installations in 14 countries, 2023–2025. Post-consumer data assumes mechanically recycled PE from established wash-and-repelletize operations in Southeast Asia.
The fundamental difference: virgin PE is consistent within ±2–3% on every property that matters. Recycled PE is not. A factory running 100% virgin PE sets the extruder temperature profile once and adjusts for seasonal ambient temperature changes. A factory running recycled PE tests every incoming batch for MI, adjusts barrel temperatures accordingly, and still accepts that some batches will produce more scrap than others. This consistency difference — not the cost difference — is what determines where each material belongs.
Cost Factor | 100% Virgin PE | ABA Hybrid (35% Recycled Core) | 100% Recycled PE (PIR, Thick Film) |
|---|---|---|---|
Raw material ($/ton of finished film) | $1,150 | $910 | $620 |
Scrap rate (%) | 1.5–2.5 | 2.0–3.5 | 4.0–7.0 |
Machine investment (relative) | Baseline | +$15,000–$25,000 (ABA vs mono-layer) | +$18,000–$35,000 (barrier screw, continuous screen changer, melt pump, degassing) |
Operator skill premium | None | +10–15% (2-material management) | +25–40% (batch testing, frequent adjustment) |
Screen pack consumption (changes/month) | 3–5 | 6–10 | 15–25 |
Screw/barrel life (years) | 8–12 | 6–9 (core extruder) | 4–6 |
Net material saving vs 100% virgin (500t/yr) | — | $90,000–$110,000 | $200,000–$250,000 |
Source: Cost estimates based on Mingyang production data from ABA and mono-layer installations across 14 countries, 2022–2025. Virgin PE price: Q1 2026 Asia ex-works average. Recycled PE price: post-industrial clean trim repelletized, Southeast Asia delivered. Actual prices vary by region and contract volume.
The headline saving — $560/ton for recycled versus virgin — is real but incomplete. Unlike virgin PE film — where scrap is low, machine wear is predictable, and operator intervention is minimal — recycled PE production consumes more screens, wears screws faster, generates more scrap, and requires more skilled (higher-paid) operators. The net saving is lower than the raw material price difference suggests. But even after accounting for these offsets, recycled content delivers a material cost advantage that, at current pricing, no other single variable in blown film production can match.
Mechanical Property | 100% Virgin LDPE Film | ABA: Virgin Skins + 35% Recycled Core | 100% Recycled PE (Post-Industrial) |
|---|---|---|---|
Tensile strength, MD (MPa) | 22–26 | 21–25 | 16–21 |
Tensile strength, TD (MPa) | 18–22 | 17–21 | 13–18 |
Elongation at break, MD (%) | 350–500 | 320–470 | 180–320 |
Dart drop impact (g, 35μm) | 110–140 | 100–135 | 65–95 |
Elmendorf tear, MD (N/mm) | 60–90 | 50–80 | 30–55 |
Heat seal strength (N/15mm, 130°C) | 10.5–12.5 | 10.0–12.0 | 6.5–9.5 |
Haze (%, 35μm film) | 4–7 | 5.5–10 | 12–22 |
Gloss (60°, GU) | 70–85 | 65–80 | 35–55 |
Source: Mingyang laboratory test data, 2023–2025. All films tested at 35-micron gauge, LDPE-LLDPE 80:20 blend for virgin and ABA skin layers, post-industrial recycled LDPE for core and 100% recycled samples. Tests conducted per ASTM D882 (tensile), ASTM D1709 (dart drop), ASTM D1922 (tear), ASTM D1003 (haze), ASTM D2457 (gloss). Values shown are typical ranges across multiple production batches; individual results vary with specific resin grades, recyclate sources, and processing conditions.
The key finding: the ABA hybrid with 35% recycled core retains 90–97% of virgin tensile strength and 85–95% of virgin impact and seal strength. The drop from virgin to ABA hybrid is small and, in most commercial non-food applications, undetectable to the end-user. The drop from virgin to 100% recycled is large — a 25–40% reduction in tensile strength, a 35–55% reduction in dart drop, and seal strength at the low end of the range that may fail a customer's minimum specification.
Unlike tensile strength — where the ABA hybrid closely tracks virgin film — tear resistance degrades more noticeably with recycled content. This is because tear propagation follows the path of least resistance through the film cross-section. A gel particle or a domain of lower-molecular-weight recycled material in the core creates a preferred tear path. In the ABA hybrid, the virgin skins bridge across these weak points. In 100% recycled film, there are no bridging layers — the tear propagates continuously through the weak domains.
Virgin PE extrudes predictably. Set the barrel temperature at 175–195°C, set the screw RPM, and the melt pressure stabilizes within 15–20 minutes of startup. Melt pressure variation at steady state: ±2–3%. Bubble stability: consistent frost line height, minimal breathing, bubble breaks rare (1–2 per month on a well-maintained line).
Recycled PE extrudes unpredictably. Unlike virgin PE — where every pellet melts within a 10°C band — recycled PE contains polymer fractions that melt at 110°C and fractions that melt at 130°C. The extruder must process both simultaneously. The lower-melting fraction reaches the metering zone first as a low-viscosity melt. The higher-melting fraction arrives later as semi-solid particles. The die sees a melt stream whose viscosity oscillates with each screw rotation. Melt pressure variation: ±8–15% without a melt pump, ±3–5% with a melt pump.
Bubble stability is the most visible processing difference. Recycled PE has lower melt strength — the bubble necks in more above the die, the frost line is less defined, and the bubble is more sensitive to air currents and ambient temperature changes. IBC is strongly recommended for recycled PE above 30% content because the enhanced cooling stabilizes the bubble at a defined frost line position.
Food-contact packaging (primary). FDA 21 CFR and EU 10/2011 require virgin material or specifically authorized recycled processes. This is not a quality decision — it is a regulatory requirement. The cost of non-compliance (product recall, liability, customer delisting) dwarfs any material saving.
High-clarity film (shrink film, display packaging, premium carrier bags). Recycled PE adds 1.5–5.5 points of haze depending on content. For shrink film where the product underneath must be clearly visible, or premium bags where gloss is a selling point, virgin PE is the material of choice.
Films under 20 microns. Thin gauge amplifies every defect. A 40-micron gel particle in a 20-micron film is a hole waiting to happen. Virgin PE's near-zero gel count is essential for consistent thin-film production.
Medical and pharmaceutical packaging. Regulatory traceability requirements mandate virgin material with full resin certification documentation.
When customer specification explicitly requires 100% virgin PE. Some tenders — particularly government supply contracts and multinational brand packaging — specify virgin material. In these cases, the material decision is made for you. The question becomes which virgin grade offers the best price-performance ratio, not whether to use recycled content.
Thick-gauge, non-clarity, non-food film. Construction film, black garbage bags, agricultural mulch film, temporary protective film. These applications share a profile: thick (≥50 microns), colored (usually black), mechanically non-critical, and price-sensitive. Recycled PE — up to 100% post-industrial in suitable applications — is commercially proven here.
When you are losing orders on price. If your virgin-PE pricing cannot compete with local producers who use recycled content, the ABA hybrid (35–40% recycled core, virgin skins) reduces your material cost by $90,000–$110,000 per year at 500 tons output while maintaining surface quality your customer can see and feel. This is the single most effective cost-competitiveness lever available to blown film converters.
When sustainability certification adds commercial value. Retail chains and brand owners increasingly require recycled content percentages in packaging. An ABA film with 35% post-consumer recycled PE in the core may qualify for sustainability certification (e.g., Global Recycled Standard) and command a price premium or secure preferred-supplier status — offsetting or exceeding the remaining virgin material cost.
The Lagos converter from the opening story did not switch to 100% recycled PE. After reviewing the quality data, he purchased a Mingyang ABA 3-layer line (55/65/55mm, 1,200mm die) configured with a 30:1 barrier screw on the core extruder and a continuous screen changer. He ran 35% post-industrial recycled LDPE in the core layer, virgin LDPE-LLDPE blend skins.
His largest customer — a retail chain purchasing 15 million shopping bags per year — conducted a blind quality audit. Their inspector tested tensile strength, dart drop, heat seal strength, and visual appearance on bags from the new ABA production and bags from the previous 100% virgin mono-layer production. The inspector reported no quality difference requiring specification adjustment. The retail chain continued ordering at the same price. The converter's raw material cost per ton dropped from $1,180 to $925 — a $255/ton saving. At 420 tons annual output: $107,100 saved per year.
Machine investment: $52,000. Payback: 5.8 months from material savings alone. After 18 months of production, screw wear on the core extruder was measured at 0.3mm — within normal range for recycled PE at 35%. Screen pack consumption increased from 4 to 8 changes per month, adding approximately $1,200/year in consumable cost — negligible against the $107,000 material saving.
The transition from 100% virgin PE to recycled content — whether 35% in an ABA core or higher percentages in specific applications — depends on machine engineering that generic suppliers do not always provide. Mingyang's specific expertise in recycled PE processing makes this transition predictable rather than experimental.
20+ years manufacturing blown film equipment. Mingyang (Jiangyin Mingyang Packaging Machinery Co., Ltd.) has produced film blowing machines since 2003 from Jiangyin, Jiangsu. The engineering team includes screw design specialists who match L/D ratio, compression ratio, and mixing section geometry to your specific recyclate source — post-industrial trim from a known LDPE-LLDPE blend requires a different screw profile than post-consumer mixed-polyolefin flake.
CE-certified, exported to 40+ countries. Mingyang ABA machines configured for recycled PE are running in factories across Southeast Asia, South Asia, Africa, the Middle East, and South America — the markets where virgin-vs-recycled price spreads are widest and where the ABA hybrid approach delivers the fastest payback.
Every recycled-PE machine undergoes a FAT with the customer's actual recyclate. Before crating, each Mingyang machine configured for recycled content runs a 4+ hour factory acceptance test using your specific recycled material — not a clean virgin demo resin. Melt pressure stability (±3% with melt pump), gel count on finished film, output rate, energy consumption, and film thickness profile are recorded at 15-minute intervals and provided in the machine documentation package.
2,000+ spare parts SKUs, 48-hour dispatch. Recycled PE production consumes screen packs, accelerates screw inspection frequency, and requires more frequent barrel wear monitoring. Mingyang maintains critical spares in Jiangyin for rapid dispatch to customers across the export network.
Virgin LDPE film-grade resin: $1,050–$1,250/ton ex-works Asia (Q1 2026). Post-industrial recycled LDPE pellets from clean factory trim: $550–$750/ton. Post-consumer recycled LDPE pellets (washed, repelletized): $400–$650/ton. The spread between virgin and post-industrial recycled — $400–$600/ton — is the economic driver behind the ABA hybrid approach. At 35% recycled content in the core of a 500-ton/year operation, this spread translates to $75,000–$105,000 in annual material savings. The spread varies by region: in markets close to major virgin PE production (Middle East, Southeast Asia), the spread is narrower ($350–$450/ton). In markets far from virgin production but with established recycling infrastructure (parts of South Asia, East Africa), the spread can exceed $600/ton.
In an ABA structure with virgin PE skins, film with 35% recycled PE in the core retains 92–98% of virgin tensile strength — within the typical ±10% commercial specification window for non-food packaging film. In a 100% recycled mono-layer film, tensile strength drops to 65–80% of virgin values. Unlike the ABA hybrid — where the virgin skins carry most of the tensile load and bridge across weak points in the recycled core — 100% recycled film has no bridging layer. Every weak domain in the recycled material contributes directly to the measured tensile strength. For applications where the customer specifies a minimum tensile value (many retail chain packaging specifications require ≥20 MPa MD tensile on 35μm film), 100% recycled PE may fail to meet the specification.
Laboratory research published by Plastics Technology and the Association of Plastic Recyclers indicates that LDPE retains acceptable blown film processability through 3–5 extrusion cycles before chain scission (thermal-mechanical degradation) reduces molecular weight below the threshold for adequate melt strength. In practice, post-industrial recyclate has 1–2 heat histories and performs well in the ABA hybrid approach. Post-consumer recyclate has 2–4 heat histories and shows measurable property degradation versus virgin. The degradation is cumulative and irreversible: each additional extrusion cycle breaks more long polymer chains. Blending in 20–30% virgin PE with each recycle cycle extends the usable life of the recycled fraction by replenishing the long-chain population.
No — with specific exceptions. FDA 21 CFR and EU 10/2011 require that food-contact materials be manufactured from virgin resin or from recycled processes that have received specific authorization (typically closed-loop bottle-to-bottle PET recycling or chemically recycled/depolymerized material). Mechanical recycling of post-consumer PE film does not currently qualify for direct food-contact approval under either regulatory framework. Post-industrial recycled PE from the same factory's own scrap — material that never left the factory and has a known, documented material history — may be used in food-contact applications under certain HACCP-controlled conditions. Consult your regulatory compliance specialist before using any recycled content in food-contact film.
For a 35% recycled PE core in an ABA 3-layer machine, the minimum upgrades are: (1) a barrier screw with L/D 30:1 minimum on the core extruder ($3,500–$5,000), (2) a melt pump to dampen melt-pressure oscillation from variable-viscosity recyclate ($5,000–$8,000), and (3) a screen pack upgrade from 60/80 mesh to 80/100 mesh ($120–$180 per pack, consumed 6–10 times per month). For 100% recycled PE in a mono-layer machine, add a continuous screen changer ($8,000–$14,000) and a vented barrel or vacuum hopper for moisture removal ($3,000–$6,000). Total upgrade investment for ABA hybrid: $8,500–$13,000. Total for 100% recycled mono-layer: $18,000–$35,000.
It depends on the recycled percentage and the application. At 35% recycled PE in an ABA core with virgin skins, the haze increase of 1.5–3.0 points is visible on a laboratory haze meter but typically not to a consumer picking up a shopping bag. At 100% recycled PE, the haze increase (12–22% versus 4–7% for virgin), reduced gloss (35–55 GU versus 70–85 GU), and occasional gel specks (5–25 per m²) are visible to the unaided eye. Customer perception also depends on context: a consumer buying premium retail carrier bags has higher clarity expectations than a construction foreman buying black vapor barrier. The safest rule: if your customer has ever commented on film clarity, gloss, or "feel," you need virgin skins between the recycled content and your customer's eyes.
ABA Film Recycled Material: How Much Can You Use Without Quality Loss? — Application-specific recycled content limits, quality metrics by percentage, and the 5 factors that determine your ceiling
Can You Use 100% Recycled Material in Blown Film Production? — Technical barriers, machine requirements, and where 100% recycled film is commercially viable

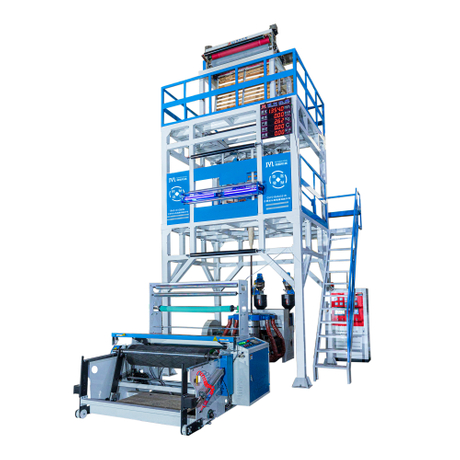

ABA 3-Layer Film Blowing Machine — Full product specifications and recycled PE processing configurations for Mingyang ABA series
How to Choose the Right ABA Film Blowing Machine for Your Factory (2026 Guide) — Extruder configuration, screw design, and die sizing decisions
7 Proven Ways to Reduce Plastic Film Production Costs in 2026 — Cost-reduction methods with payback calculations, from recycled PE to energy efficiency
How to Choose Screw Configuration for Blown Film Extruders — Barrier screws, L/D ratios, and material-specific screw selection for recycled PE, virgin PE, and HDPE
Tell us about your current production and material costs. Within 1 business day, I will send you a 4–5 page Cost-Benefit Analysis with: a side-by-side profit comparison of 100% virgin versus ABA hybrid (35% recycled core) versus 100% recycled for your specific film product, recommended machine configuration, required upgrade costs with payback calculation, and quality test benchmarks at your target film gauge and materials.
What to include:
Your film product (type, typical gauge, typical width, color)
Current material cost ($/ton for virgin PE you currently use)
Current machine type (mono-layer / ABA, extruder sizes in mm)
Monthly output in tons
Do you have access to a recycled PE supplier? (If yes: post-industrial or post-consumer? approximate price?)
Does your customer specification allow recycled content? (If known)
Your location (city/country — for regional virgin-vs-recycled price spread reference)
Email: carrie@jymingyang.com | Phone/WhatsApp: +86-189-6169-1127
Response time: Within 1 business day. You will receive a detailed PDF Cost-Benefit Analysis with profit comparison across 3 material strategies for your specific film product and region.
About the Author
Carrie — Technical Sales Engineer, Mingyang (Jiangyin Mingyang Packaging Machinery Co., Ltd.). 8+ years in blown film and bag making machinery. Based in Jiangyin, Jiangsu, Carrie has worked with customers across Southeast Asia, Africa, the Middle East, and South America on machine selection, production line configuration, and factory-level cost optimization for film blowing and bag making equipment.
