If your factory produces shopping bags or garbage bags with recycled material, an ABA blown film machine is usually the most cost-effective choice — it lets you run 20-30% recycled PE in the core layer while keeping virgin-grade surface appearance. If you need barrier packaging for food or liquid products, ABC co-extrusion gives you independent control over all three layers so you can combine a seal layer, a barrier core, and a printable skin in one film. For simple agricultural film or drop cloth where raw material cost is the main concern and you run a single formulation all week, a mono-layer line is still the right answer.
This guide walks through the real production factors — not just specifications — that determine whether a machine makes money or becomes a headache.
In eight years of selling blown film extrusion lines to packaging factories across Southeast Asia, the Middle East and Africa, the most expensive mistake I see is not a machine breaking down — it is buying the wrong machine for the actual production environment.
Last year, a customer in Surabaya, Indonesia contacted us six months after buying a mono-layer blown film line from another Chinese supplier. His problem was not the machine quality — the extruder ran fine. The problem was that his customer — a supermarket chain — suddenly required 20% recycled content in shopping bag film. A mono-layer machine cannot run recycled PE without affecting film appearance, because there is no skin layer to hide the recycled material. He ended up selling that machine at a loss and ordering an ABA 3-layer line from us.
His total cost of getting it wrong: approximately $12,000 in lost machine value, six months of rejected orders, and a damaged relationship with his largest customer.
This guide is not a generic machine comparison. It is what I tell factory owners during pre-sales consultations — the factors that actually determine whether a blown film machine produces profit or problems.
The question I ask every customer first is not "What output do you need?" It is "What film are you selling, and to whom?"
Here is why. A machine optimized for 80-micron LDPE agricultural film will struggle to produce 25-micron LLDPE packaging film at acceptable quality. The screw, die gap, cooling system, and winding tension were all sized for a different product. You cannot fix this with operator skill — it is a hardware limitation.
Before you look at any machine specification sheet, write down these six parameters with actual numbers:
Lay-flat width range (minimum and maximum, in mm)
Film thickness range (in microns, with your most common running thickness circled)
Primary raw material or material combination (LDPE, LLDPE, HDPE, metallocene PE, recycled content percentage, any barrier resin)
Required output per day or per month in kilograms — based on actual downstream orders, not "what would be nice to have"
Film property specifications your customer actually measures (tensile MD/TD, elongation at break, dart impact, haze, gloss, COF — if your customer does not measure it, do not over-specify it)
Post-production processing: does the film go directly to printing, lamination, or automatic bag making lines?
If you skip this step and buy based on the supplier's standard specification, you are gambling.
This is the single most important configuration decision you will make, and it affects your raw material cost — not just your machine price — for the entire life of the equipment.
A single extruder, a single material, a single-layer die. Film thickness typically 0.008mm to 0.15mm. This is the right machine when your film product genuinely only needs one polymer, your production volume is under 80 kg/h, and your customer does not require multi-layer film properties.
I sell relatively few mono-layer machines these days, but they still have their place. A customer in Kenya producing LDPE agricultural mulch film — same width, same thickness, same resin, running 24 hours a day — does not need the complexity or capital cost of a multi-layer machine. For him, a mono-layer line with a reliable screw and a simple control system means less downtime and easier maintenance with the technicians he has available locally.

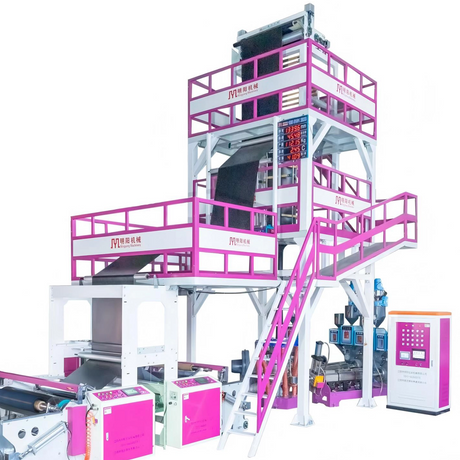

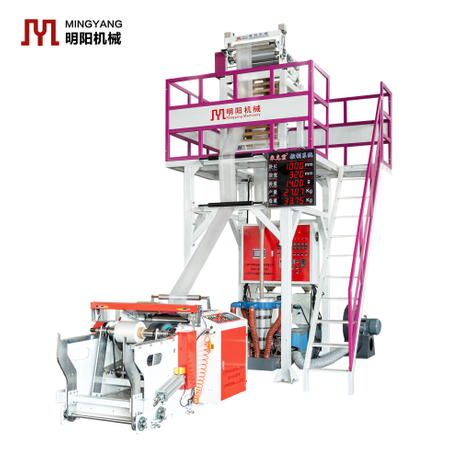

ABA uses three extruders but only two different materials. The two outer skin layers (A) share one material source, while the core layer (B) uses a second extruder. This is the configuration that about 70% of our packaging film customers choose, and the reason is straightforward: raw material savings.
A factory producing 500 tons of film per year, running 25% recycled PE in the core layer of an ABA machine, saves approximately $100,000 to $150,000 annually in resin cost at current recycled PE pricing — compared to running 100% virgin material on a mono-layer line. The ABA machine costs $25,000 to $40,000 more upfront, but that additional capital is typically recovered within 18 to 24 months through material savings alone.
One of our customers in Lagos, Nigeria runs an ABA blown film machine for garbage bag production — 30% post-consumer recycled PE in the core, virgin LDPE/LLDPE blend on the skins. The film looks and performs like all-virgin material. His competitors, running mono-layer machines, cannot match his price point because they are buying 100% virgin resin.

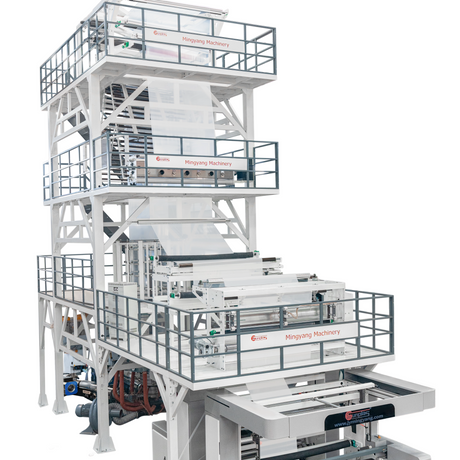

ABC uses three independent extruders feeding three completely different materials into a co-extrusion die. Each layer has a specific job: perhaps a high-gloss skin for print quality, a PA or EVOH core for oxygen barrier, and a low-seal-initiation-temperature inner layer for high-speed packaging line compatibility.
ABC machines cost more — typically 60 to 85% more than an equivalent-output mono-layer line — and require an operator who understands how different melt flow indices interact in a co-extrusion die. I advise customers to only go the ABC route when their customer specification genuinely demands barrier properties or independent layer functionality. If you are producing general packaging films where the main requirement is strength and appearance, ABA does the job at lower capital and operating cost.
Factor | Mono-Layer | ABA | ABC |
|---|---|---|---|
Machine price (complete line, approximate) | $18,000 - $45,000 | $35,000 - $90,000 | $65,000 - $150,000+ |
Raw material cost per kg of film | 100% virgin unless pre-blended | 20-30% lower via recycled core | Depends on layer materials; barrier resins add cost |
Operator skill needed | Basic — one operator can manage | Intermediate — typical packaging factory staff | Experienced — understanding of multi-material extrusion |
Most common application | Agricultural film, construction film, simple drop cloth | Shopping bags, garbage bags, general packaging with recycled content | Barrier food packaging, liquid packaging, lamination base film |
Typical scrap rate when dialed in | 3-5% | 2-4% | 3-5% (more complex = more start-up waste) |
When it is the right choice | Single product, single material, budget-constrained startup | Packaging film with recycled content requirement or cost pressure | Customer specification demands barrier, seal, or optical performance per layer |
I have seen factories order a standard polyolefin screw and then wonder why their HDPE film has poor gauge uniformity. The screw is the heart of the extrusion system, and its geometry — compression ratio, L/D ratio, mixing section type — must match the polymer.
A general-purpose screw with L/D of 28:1 to 32:1 and compression ratio of 3:1 to 4:1 handles LDPE and LLDPE without issue. LLDPE requires higher motor torque due to its higher melt viscosity — if you plan to run high percentages of LLDPE or metallocene PE, specify the larger motor and gearbox at quotation stage. Retrofitting a motor after installation costs three times as much.
HDPE requires a longer screw — L/D 30:1 to 34:1 — with a lower compression ratio (2:1 to 3:1) and a wider die gap (1.8mm to 2.5mm versus 1.2mm to 1.8mm for LDPE). HDPE melt has lower melt strength, so the bubble is less stable and the frost line is harder to control. If you split production between LDPE and HDPE, ask your supplier for a dual-purpose screw design. Do not assume a standard LDPE machine will produce good HDPE film — it will not.
Running recycled PE — whether post-consumer or post-industrial — introduces three problems that a virgin-PE machine does not have: inconsistent melt flow index batch to batch, contamination (paper, metal fragments, other polymers), and moisture content. Two hardware additions make a significant difference:
Screen changer: A hydraulic continuous screen changer on the core extruder protects the die from contaminants. A manual slide-plate screen changer is cheaper but requires the operator to change screens during production, which most operators delay until film quality visibly degrades — by which point some contamination has already reached the die.
Mixing section on the screw: A Maddock or barrier mixing section homogenizes melt from variable-viscosity recycled feedstock. Without it, you get melt pressure fluctuation and visible gel patterns in the film.
One of our customers running 30% post-consumer recycled PE in their ABA line in Surabaya reduced scrap from 7% to below 4% just by upgrading from a manual slide-plate to a hydraulic screen changer. The $3,500 upgrade paid for itself in four months through reduced waste.
Every machine datasheet quotes output in kg/h at a specific reference condition — usually 50-micron LDPE film at a specific width and blow-up ratio. This number tells you almost nothing about what the machine will produce in your factory.
Real output depends on four factors that the datasheet does not control:
Film thickness: A machine producing 150 kg/h at 50 microns will produce approximately 75 to 80 kg/h at 25 microns with the same material. If you plan production scheduling around the 50-micron reference output and your typical order is 25 microns, you will miss deliveries.
Material type: HDPE runs 15 to 20% slower than LDPE on the same machine because lower melt strength limits how fast you can pull the bubble before it destabilizes.
Blow-up ratio (BUR): Higher BUR requires more cooling and limits line speed. A machine optimized for BUR 2:1 may lose 10 to 15% output at BUR 3.5:1 because the air ring cannot pull enough heat out of the wider bubble surface area.
Ambient temperature and humidity: In tropical factories without climate control — which describes most packaging plants in Southeast Asia and Africa — summer output falls 10 to 20% below winter output because warmer cooling air removes less heat from the bubble. In a factory in Nigeria, we measured a 14% output difference between January and July on the same machine running the same formulation.
My rule for production planning: take the supplier's quoted output at your specific film width, thickness, and material, then reduce it by 15% for your baseline capacity plan. If you consistently beat that number, it is upside. If you plan around the maximum quoted figure, you will break delivery promises to your own customers.
A 100 kg/h blown film line running 6,000 hours annually consumes roughly 400,000 to 600,000 kWh depending on drive efficiency, heating design, and cooling configuration. At $0.10/kWh industrial electricity, that is $40,000 to $60,000 per year — over an 8-year service life, the electricity bill exceeds the machine purchase price.
Three design decisions have the biggest impact on energy per kilogram:
Servo motors vs AC motors: Servo drives on extruders and the take-up system reduce energy consumption by 12 to 18% compared to conventional AC motors, because servo motors maintain efficiency across a wider speed range. Most of our customers who upgrade to servo drives report the cost difference recovered within 18 to 24 months through electricity savings.
Barrel insulation: Ceramic heater bands with insulated covers reduce radiant heat loss by 5 to 8%. Uninsulated barrels dump waste heat into the production hall, which then increases air conditioning load in climate-controlled facilities — a double energy penalty.
Internal Bubble Cooling (IBC): IBC increases solidification rate and enables 15 to 25% higher output from the same extruder size. The energy cost per kilogram decreases because fixed overhead (lighting, compressed air, building HVAC) is amortized over more output.
The die head and air ring determine gauge uniformity, which directly affects your scrap rate and your customer's processing efficiency on automated packaging lines. A film roll with plus or minus 8% gauge variation will cause sealing problems on a form-fill-seal machine. One with plus or minus 4% or better will run without interruption.
On the die head, look for: spiral mandrel design with multiple channels (more channels equals better melt distribution), hard-chrome-plated flow surfaces (reduces polymer degradation and gel formation at the die lip), and an adjustable die gap (enables switching between LDPE and HDPE without a die change).
On the air ring, a dual-lip design provides better control than single-lip. An automatic air ring — with motorized lip adjustment driven by real-time gauge feedback — compensates for ambient temperature drift through the day and between shifts. For a line running 24/7 producing packaging film for demanding customers, an automatic air ring typically recovers its cost through reduced scrap within 12 to 18 months.
I have visited factories where the extruder was capable of 150 kg/h but the line was running at 115 kg/h because the winder could not maintain tension at higher speed. The operator slowed the line down to prevent telescoping rolls, and the factory owner had no idea he was losing 35 kg/h of capacity every shift — roughly $70,000 in lost revenue annually.
For films below 25 microns, center winding with closed-loop tension control is strongly preferred over surface winding. For continuous production above 100 kg/h, a dual-turret winder eliminates the downtime of stopping the line to unload rolls. The oscillating haul-off must distribute gauge bands evenly across the roll — without oscillation, hard bands form at specific points and cause printing registration failure downstream.
Location | Surabaya, Indonesia |
Machine | ABA 3-layer blown film machine, 55/45/55mm screw diameters |
Film product | Shopping bag film, 35-50 microns, LDPE/LLDPE blend |
Material structure | Virgin LDPE+LLDPE skins / 25% post-consumer recycled PE core |
Target output | 140 kg/h at 50 microns, BUR 3:1 |
Actual running output | 132 kg/h average across shifts (ambient temperature variation in Surabaya accounts for the difference) |
Results after 12 months of operation:
Raw material cost reduced by 18% compared to 100% virgin mono-layer production — approximately $112,000 annual savings at then-current Indonesian recycled PE pricing
Scrap rate reduced from 7% (previous mono-layer machine) to 3.5% — better gauge control from spiral mandrel die and automatic air ring
Machine payback period: 16 months based on material savings alone, excluding revenue from increased capacity
Customer's competitive position: able to bid on supermarket chain tenders requiring minimum 20% recycled content — a market segment inaccessible with the previous mono-layer machine
What we learned from this project: The customer initially requested a mono-layer replacement machine because the capital cost was lower. During consultation, we identified that his two largest customers were moving toward recycled content requirements. We recommended the ABA configuration based on the market direction, not the immediate budget. The higher upfront cost was the correct decision — eighteen months later, the recycled-content capability had become a market requirement, not a differentiator.
When a customer visits our factory in Jiangyin for a factory acceptance test, here is what we run through over two to three days:
No-load run of each extruder: Verify screw rotation, barrel heating ramp rate and temperature overshoot across all zones, gearbox oil temperature stabilization, and motor current draw at full speed with no material. Abnormal current or vibration at this stage indicates a bearing or alignment issue before resin ever enters the machine.
Production trial with customer's actual formulation: We ask the customer to send their raw material — typically 200 to 300 kg of their actual resin blend — two weeks before the test. Running the customer's material reveals processing behavior that a standard reference LDPE would not show.
Gauge profile measurement: We run the film for a minimum of four hours continuously and measure gauge at 10 points across the web every 30 minutes. The gauge variation across the roll and over time tells you more about long-term process stability than any single-point measurement.
Operator training during the test: The customer's operators run the machine themselves on day three, with our technician observing. If they cannot produce acceptable film independently, the training is not complete.
If a supplier is not willing to run a production trial with your material before shipping, ask why.
Request reference film rolls: Ask for roll samples from a machine identical to your quoted configuration. Measure gauge uniformity. Run the film through your downstream process. If the supplier cannot provide samples from the same machine model running a similar formulation, treat this as a risk factor, not necessarily a dealbreaker — but verify commissioning support more carefully.
Check electrical component brands: Temperature controllers, relays, contactors, and drives should use globally available brands — Siemens, Schneider, Omron, Delta, ABB. If the machine uses unfamiliar domestic-brand components, ask about local availability in your country. A $50 temperature controller that takes three weeks to ship from China can cost thousands in downtime.
Confirm after-sales support mechanism: What is the response time for a technical video call? Can the supplier dispatch a service engineer to your country, and at what cost? Is there a local agent or distributor who can provide first-line support? These questions matter more than any specification on the datasheet once the machine is running in your factory.
ABA uses three extruders but only two different materials — both skin layers (A) are the same material, the core (B) is different. This is the standard for packaging film with recycled content. ABC uses three independent extruders and three completely different materials — each layer can be a different polymer. ABC is used for high-performance barrier films where each layer has a specific function, such as a seal layer, a barrier core, and a printable outer skin. ABC costs more and requires more operator skill. For most packaging applications, ABA is the right balance of capability and cost.
An ABA blown film machine is the standard configuration for recycled content. The recycled PE runs in the core layer (B) — typically 20-30% of total film weight — while virgin PE skins (A layers) maintain surface quality and film strength. Beyond 30% recycled content, film mechanical properties and appearance begin to degrade noticeably, regardless of machine configuration.
A mono-layer blown film line for basic PE packaging film: $18,000 to $45,000. An ABA 3-layer line for packaging production: $35,000 to $90,000. An ABC 3-layer line with IBC, automatic air ring, and gravimetric dosing: $65,000 to $150,000+. These are complete line prices (extruders, die, tower, haul-off, winder, basic control system) ex-works. Shipping, installation, and optional automation are additional.
A 100 kg/h line running standard LDPE/LLDPE packaging film consumes approximately 65 to 100 kWh per hour depending on machine age, motor type, and cooling configuration. Servo-driven extruders reduce consumption by 12-18% compared to AC motors. At $0.10/kWh and 6,000 operating hours per year, annual electricity cost ranges from $39,000 to $60,000.
A well-maintained blown film line from a reputable manufacturer has a service life of 8 to 12 years before major component replacement (gearbox rebuild, screw replacement, control system upgrade). The screw and barrel are wear items — with abrasive or recycled materials, expect screw replacement at 4 to 6 years. Regular purging, proper shutdown procedures, and clean raw material handling extend machine life significantly.
A basic mono-layer line needs one operator per shift. An ABA or ABC line with automatic air ring and IBC can typically be managed by one operator overseeing two machines, as the automation handles real-time process adjustments. Grade changeovers require a second person for 30 to 60 minutes to purge extruders and adjust die and air ring settings.
Standard-configuration blown film machines ship within 45 to 60 days from order confirmation and deposit. Custom screw designs, non-standard die diameters, or specialized automation extend delivery to 75 to 90 days. Sea freight from China to most destinations adds 20 to 35 days transit, plus 5 to 10 days for customs clearance and inland transport.
Every factory has different constraints — raw material access, electricity cost, operator skill level, customer specifications, and local market dynamics. A machine configuration that works for a factory in one country may not be optimal for another, even if they produce similar films.
If you are evaluating blown film machine options, send us your production parameters:
Target film width (lay-flat, mm) and thickness range (microns)
Raw material type and any recycled content requirement
Required daily or monthly output (kg)
Your local electrical supply specification (voltage, frequency, phases)
Any specific downstream processing requirements (printing, bag making, lamination)
We will provide a configuration recommendation with estimated output, energy consumption, and pricing — based on what has actually worked for customers producing similar films, not what looks good on a specification sheet.
