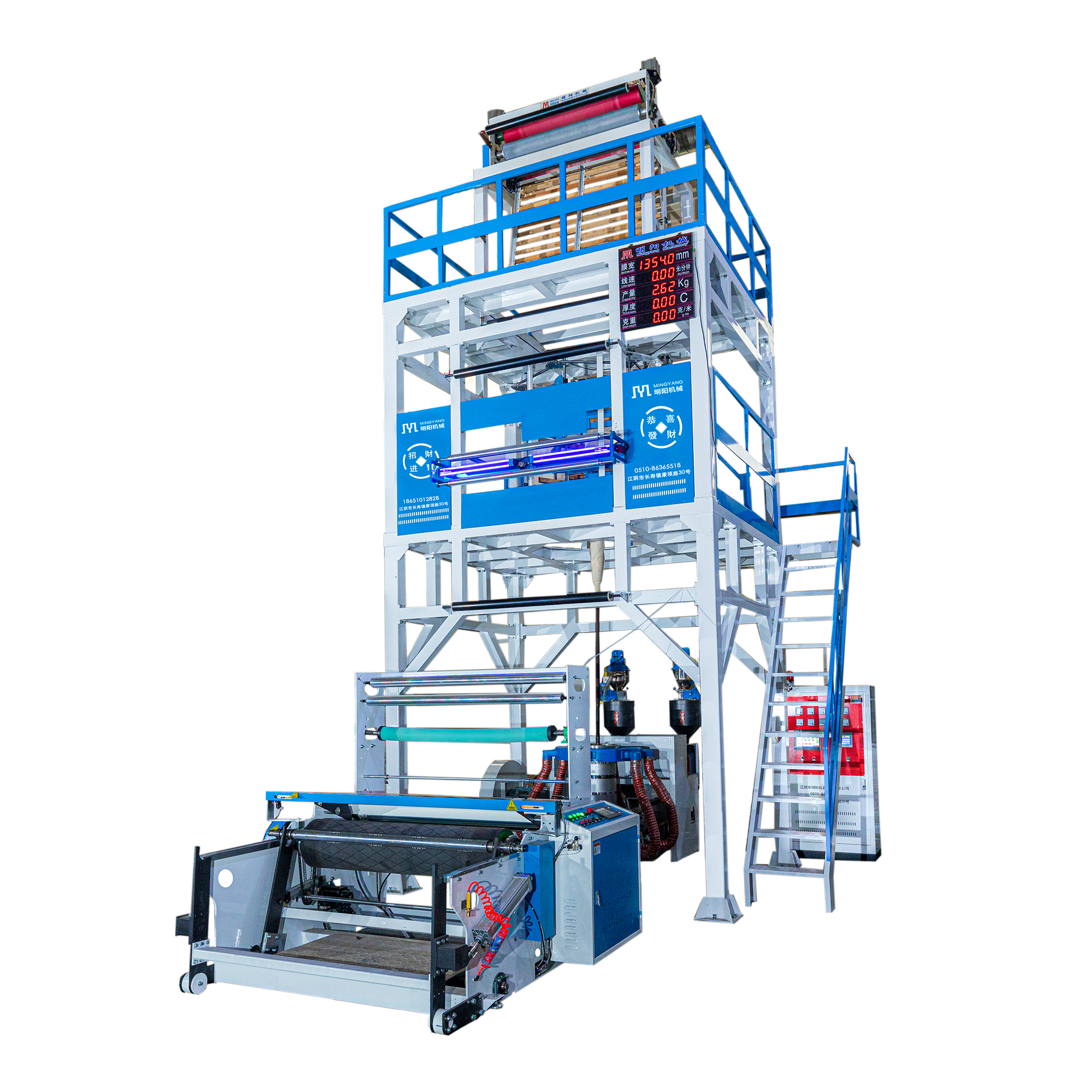

High-speed Film Blowing Machine

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button


Mingyang Machinery high-speed film blowing machine advanced technology and reliable performance, has become a high-quality choice for manufacturing enterprises, helping you seize the initiative in market competition.


Excellent Performance, High-Efficiency Output

◎ Strong Raw Material Adaptability:

Capable of processing various plastic raw materials, such as (LDPE), (HDPE), and (LLDPE), to meet different customers' requirements for garbage bag properties. Whether it is softness or durability, precise realization is achievable.


◎ Flexible Production Specifications:

The folded width of the film can be adjusted between 450 - 2000mm, and the thickness range of the blown film is 0.008 - 0.08mm. It can efficiently produce everything from small household garbage bags to large commercial and industrial garbage bags, fully satisfying various market demands.


◎ Efficient Extrusion and Rapid Production:

With a screw length-diameter ratio of 32:1, combined with a carefully designed screw structure, the plasticizing effect is excellent, and the output is significantly increased.





MYB-850

MYB-1250

MYB-1400

TECHINCAL PARAMETERS

MATERIAL SUITABLE

HDPE+LLDPE+CaCo3

HDPE+LLDPE+CaCo3

HDPE+LLDPE+CaCo3

MAX FILM WIDTH

700mm

1100mm

1250mm

FILM THICKNESS

0.015-0.15mm

0.015-0.15mm

0.015-0.15mm

HEIGHT

5200mm

5800mm

7500mm

ELETRIC SOURCE

380V/50HZ

(Depends on local voltage)

380V/50HZ

(Depends on local voltage)

380V/50HZ

(Depends on local voltage)

EXTRUDER

SCREW DIAMETER

A:45mm / B:45mm

-With High-speed screw

A:50mm / B:50mm

-With High-speed screw

A:55mm / B:55mm

-With High-speed screw

SCREW MATERIAL

38CrMoALA+ALLOY

38CrMoALA+ALLOY

38CrMoALA+ALLOY

BARREL MATERIAL

38Cr

38Cr

38Cr

SCREW L/D

30:1

32:1

32:1

HEATING MODE

CERAMIC HEATER

CERAMIC HEATER

CERAMIC HEATER

HEATING ZONE

6

6

6

BARREL COOLING ZONE

2ZONE/250w

2ZONE/250w

2ZONE/250w

BARREL COOLING MODE

AIR COOLING

AIR COOLING

AIR COOLING

DRIVING MOTOR POWER

A:15KW / B:15KW

A:22kw / B:22KW

A:30KW / B:30KW

GEAR BOX

A:ZLYL173 / B:ZLYL:173

A:ZLYL180 / B:ZLYL180

A:ZLYL200 / B:ZLYL200

DIE HEAD MATERIAL

40Cr MIRROR SURFACE TREATMENT

40Cr MIRROR SURFACE TREATMENT

40Cr MIRROR SURFACE TREATMENT

DIE SIZE (HD)

50mm

70mm

90mm

AIR BLOWER POWER

5.5kw

7.5kw

11kw


ROLLER WIDTH

850mm

1250mm

1400mm

TAKE UP MOTOR

SERVO MOTOR

SERVO MOTOR

SERVO MOTOR

WINDING MOTOR

TORQUE MOTOR

TORQUE MOTOR

TORQUE MOTOR

WINDER TYPE

SINGLE FRICTION WINDER

SINGLE FRICTION WINDER

SINGLE FRICTION WINDER

DISCHARGE ROLL MODE

AUTOMATIC

AUTOMATIC

AUTOMATIC

OPTIONAL DEVICE

CORONA TREATMENT、QUICK SWITCH、ROTARY DIE、ETC.
