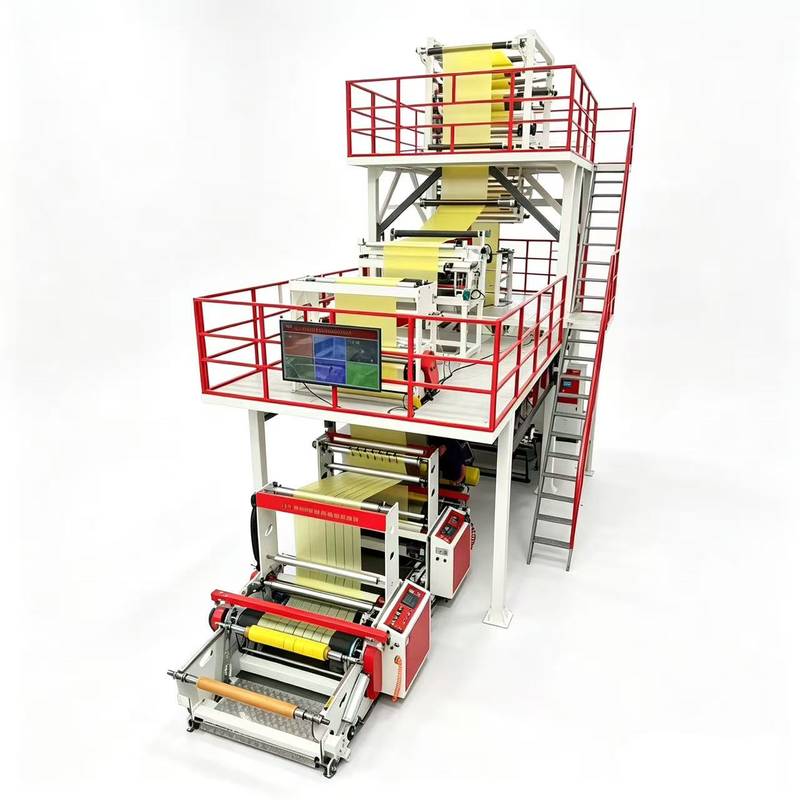

This rotary die ABA film blowing machine produces HDPE and HDPE/LDPE blend film with stretch-free gauge uniformity for high-speed downstream converting. The rotating die head eliminates fixed-position gauge bands that cause web tension hunting in printing, puckering in lamination, and inconsistent bag dimensions in conversion. Two extruders feed a three-layer ABA co-extrusion die: the A extruder supplies virgin HDPE to both outer skins; the B extruder supplies recycled, CaCO3-filled, or colored HDPE to the core. Converters producing printed shopping bags, lamination-grade film, and FFS packaging film run this machine where gauge banding from a fixed die directly causes customer rejection.
Printed shopping bag film: HDPE film for supermarket and retail bags requiring consistent gauge for high-speed flexographic printing — the rotary die eliminates the thickness bands that cause print registration drift and ink density variation across the web.
Lamination-grade base film: HDPE/LDPE blend film for subsequent lamination with BOPP, PET, or aluminum foil — gauge uniformity directly determines lamination bond consistency. Rotary die film unwinds at constant tension through the laminator without the tight/loose cycle of fixed-die film.
High-speed automatic packaging film: HDPE film for FFS (form-fill-seal) machines where bag length consistency depends on uniform film gauge — rotary die film feeds through the FFS machine at consistent advance per cycle.
Recycled-core HDPE film: ABA structure with post-industrial or post-consumer HDPE regrind in the core layer — virgin HDPE skins provide surface quality and sealability; the rotary die maintains gauge uniformity even with variable-MFI core material.
Application vs. Recommended Configuration
Application | Layer Structure | Film Gauge | Gauge Tolerance |
|---|---|---|---|
Printed shopping bag film | HDPE / recycled HDPE / HDPE | 0.012-0.03 mm | ±4% rotary die vs. ±10% fixed die |
Lamination base film | HDPE/LDPE / HDPE / HDPE/LDPE | 0.02-0.05 mm | ±4% — critical for lamination bond uniformity |
FFS automatic packaging | HDPE / CaCO3 HDPE / HDPE | 0.015-0.04 mm | ±4% — bag length consistency for FFS machines |
Recycled-core consumer bags | Virgin HDPE / PCR HDPE / Virgin HDPE | 0.015-0.035 mm | ±5% with post-consumer regrind core |
Converters supplying printed film to retail brands and supermarket chains where print registration consistency across millions of bags is a purchase specification. The rotary die eliminates the fixed-position gauge band — the printer sees uniform film thickness across the entire roll, every roll. Print registration stays consistent from the first bag to the last without the operator adjusting registration to chase gauge variation.
Lamination film producers whose customers run high-speed lamination lines at 200-300 m/min. At these speeds, a fixed-die film roll with gauge bands causes the laminator's tension control to hunt — the web oscillates, adhesive application varies, and the finished laminate has visible bond-strength variation. Rotary die film unwinds at stable tension regardless of roll diameter or unwind position.
High-volume HDPE bag manufacturers using recycled content in the core layer. The ABA structure encapsulates recycled HDPE between virgin skins — maintaining surface quality for printing and sealing while reducing virgin polymer cost. The rotary die compensates for the minor melt-flow variation that recycled material introduces, maintaining gauge uniformity even with inconsistent core-layer feedstock.
Producers competing on film quality in price-sensitive markets where the difference between winning and losing a tender is the customer's gauge-variation rejection rate. Rotary die film with ±4% gauge tolerance reduces customer rejects by 50-70% compared to fixed-die film at ±10% tolerance.
Producers making only thick-gauge construction or geomembrane film above 0.10 mm. At heavy gauges, gauge bands are less problematic — the film stiffness masks thickness variation that would cause web-tension issues in thin film. The rotary die premium pays back mainly in thin-gauge, high-speed converting applications where gauge uniformity matters. For heavy-gauge film, a standard fixed-die ABA machine is more cost-effective.
Shops producing film only for in-house bag conversion on low-speed bag machines (under 80 bags/min). Low-speed conversion is less sensitive to gauge variation — the rotary die's gauge-uniformity advantage is most valuable at high downstream speeds where tension hunting from gauge bands becomes critical.
Startups with limited maintenance capability. The rotary die mechanism adds a rotating seal, drive motor, and bearing assembly that require periodic maintenance. If your maintenance team is stretched maintaining basic extrusion equipment, the additional rotary die maintenance burden may lead to unplanned downtime. See our fixed-die monolayer machines for simpler operation.
Producers whose customers do not specify gauge tolerance and do not reject film for gauge-related issues. If your market accepts standard gauge variation, the rotary die premium does not add sellable value. This machine earns its premium where gauge uniformity is a customer requirement, not a nice-to-have.
Not sure if rotary die technology pays back for your production? Send us your film specifications and current gauge-related reject rate — we'll calculate your savings within one business day:
Your current gauge tolerance and customer rejection rate for gauge-related issues
Target film width, gauge, and monthly output
Downstream process type: printing, lamination, or high-speed bag conversion
Send your production data here.
The die head rotates continuously at 1-3 RPM during production — any minor melt-flow or temperature variation that would create a fixed-position gauge band on a stationary die is instead distributed around the full circumference of the film roll. On a fixed die, a 2% melt-flow variation at one clock position creates a visible thickness band at that same position on every layer of the roll — the film unwinds with a repeating tight-then-loose cycle. The rotary die spreads variation uniformly across 360°, and the downstream machine sees essentially constant gauge. Gauge tolerance improves from ±10% (fixed die) to ±4% (rotary die) without additional gauge control equipment.
Two extruders feed a three-layer die: the A extruder splits its virgin HDPE melt to form both outer skin layers; the B extruder supplies the core with recycled, CaCO3-filled, or colored HDPE. This structure places lower-cost material in the core without contacting the film surface — the customer sees and prints on 100% virgin HDPE. The core can contain up to 50% post-consumer regrind. The rotary die's uniform gauge distribution is especially valuable for recycled-core film, where core-layer melt-flow variation from batch-to-batch regrind would otherwise produce visible gauge bands on a fixed die.

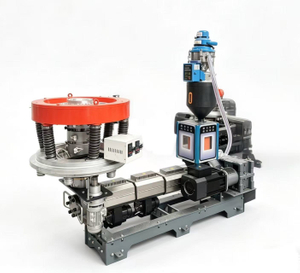

The extruder screws are designed specifically for HDPE's higher melting point (190-210°C) and higher melt viscosity compared to LDPE. HDPE requires longer residence time and higher torque for complete plastication — a screw designed for LDPE (typically 25:1 L/D with lower compression ratio) under-processes HDPE, leaving unmelt particles that create gel defects in thin film. The HDPE-optimized screw with 28-30:1 L/D and higher compression ratio ensures complete melting at 80-150 kg/h throughput, producing gel-free film at gauges down to 0.012 mm.
Free film gauge analysis — send us a sample roll of your current film, receive a gauge map and rotary die savings estimate. We'll measure your existing film's gauge profile and provide:
Gauge variation map: your current film's thickness distribution across the web width
Estimated gauge improvement with rotary die technology
Material savings estimate from reduced gauge-related overweight
No cost. You ship a sample roll; we provide the analysis. Send your sample request here.
Customer's printing press operator complaining about "tight and loose" film rolls. Fixed-die gauge bands create alternating tight and loose zones as the film unwinds — the press operator slows down to compensate, reducing printing output by 15-30%. Rotary die film unwinds at consistent tension — the press runs at rated speed without tension-related slowdowns.
Lamination bond failure traced to gauge variation in the base film. The laminator applies adhesive at controlled coat weight — gauge bands cause thicker sections to receive less adhesive per unit thickness, creating weak-bond zones that delaminate during pouch-making. Rotary die film's uniform gauge ensures consistent adhesive-to-thickness ratio — eliminating weak-bond zones.
Bag length drift on the customer's FFS machine from film gauge inconsistency. FFS machines advance film by a fixed length per cycle. When gauge varies, thicker sections produce larger bags — dimensions drift ±2-3 mm across a run, triggering QC rejection. Rotary die film's ±4% gauge tolerance reduces bag-length variation to under ±1 mm — within FFS specifications.
Recycled-core film rejected for visible surface defects that are actually gauge variation. Post-consumer HDPE regrind in the core layer has variable melt flow from batch to batch — on a fixed die, this variation creates subtle gauge bands that reflect light differently across the roll surface. The customer sees "defects" and rejects the film, even though the surface is 100% virgin HDPE. The rotary die distributes these minor variations evenly — the film surface appears uniform, and the customer accepts the recycled-core product.
Production Scenarios and Recommended Setups
Scenario | Material | Gauge | Key Benefit |
|---|---|---|---|
Printed shopping bag film (high-speed flexo) | HDPE / recycled / HDPE | 0.015-0.025 mm | Consistent print registration; no tension hunting in press |
Lamination base film (bond-critical) | HDPE/LDPE / HDPE / HDPE/LDPE | 0.025-0.04 mm | Uniform adhesive bond; no delamination zones |
FFS automatic packaging film | HDPE / CaCO3 HDPE / HDPE | 0.018-0.035 mm | Consistent bag dimensions; no FFS machine drift |
Recycled-content consumer bag film | Virgin HDPE / PCR / Virgin HDPE | 0.015-0.03 mm | Uniform surface despite recycled core; customer-accepted appearance |
Material feeding: Virgin HDPE pellets feed into the A extruder; recycled, CaCO3-filled, or colored HDPE feeds into the B extruder. Materials remain segregated from hopper to die.
Independent melting: The A extruder melts virgin HDPE at 190-210°C; the B extruder melts the core material at its optimal temperature. Both use HDPE-optimized screws with 28-30:1 L/D for complete plastication.
ABA co-extrusion through rotary die: The A melt splits into two streams forming the outer skin layers; the B melt forms the core. The die head rotates at 1-3 RPM — distributing any melt-flow variation through 360° of the bubble circumference.
Bubble formation & cooling: The three-layer melt tube exits the rotating die and inflates. The air ring cools the external surface; bubble cage stabilizes the bubble for consistent width.

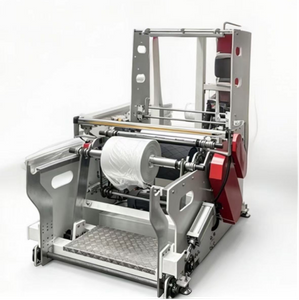

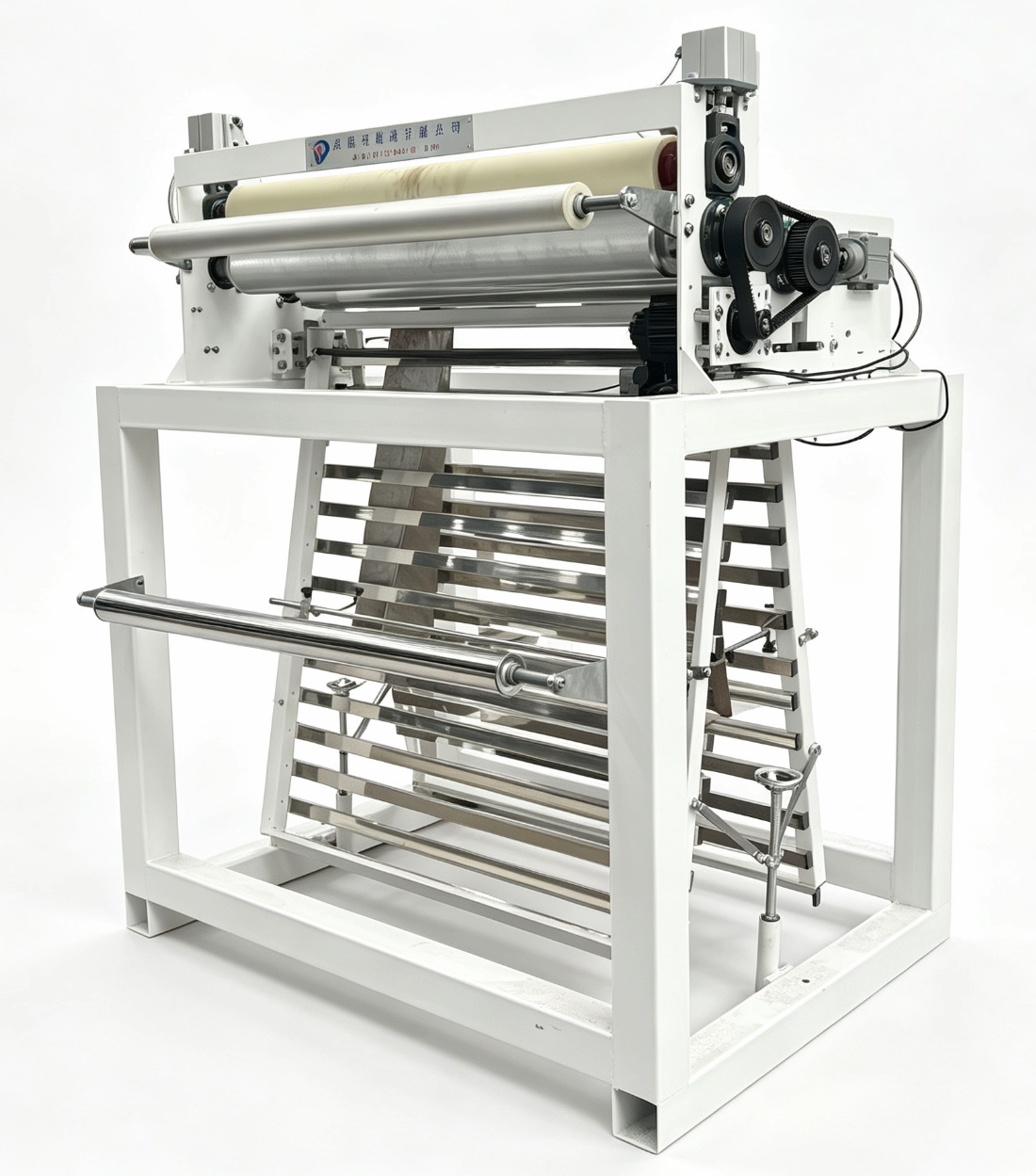

Collapsing & winding: The collapsing frame flattens the bubble. The winder produces finished rolls with uniform gauge — no fixed-position thickness bands.
Available Options and When They Add Value
Option | What It Does | Suited For |
|---|---|---|
Internal Bubble Cooling (IBC) | Dual-side cooling for higher output and improved bubble stability | Output targets above 100 kg/h; thin-gauge HDPE under 0.02 mm |
Corona treater (inline) | Surface treatment to raise dyne level for printing ink adhesion | Film destined for flexographic or rotogravure printing |
Gravimetric blender per extruder | Precision dosing of masterbatch, UV stabilizer, and additives | Color-critical film; functional additive films |
Automatic gauge control with online thickness sensor | Closed-loop die bolt adjustment from real-time thickness measurement | When ±4% gauge tolerance must be documented for customer audit |

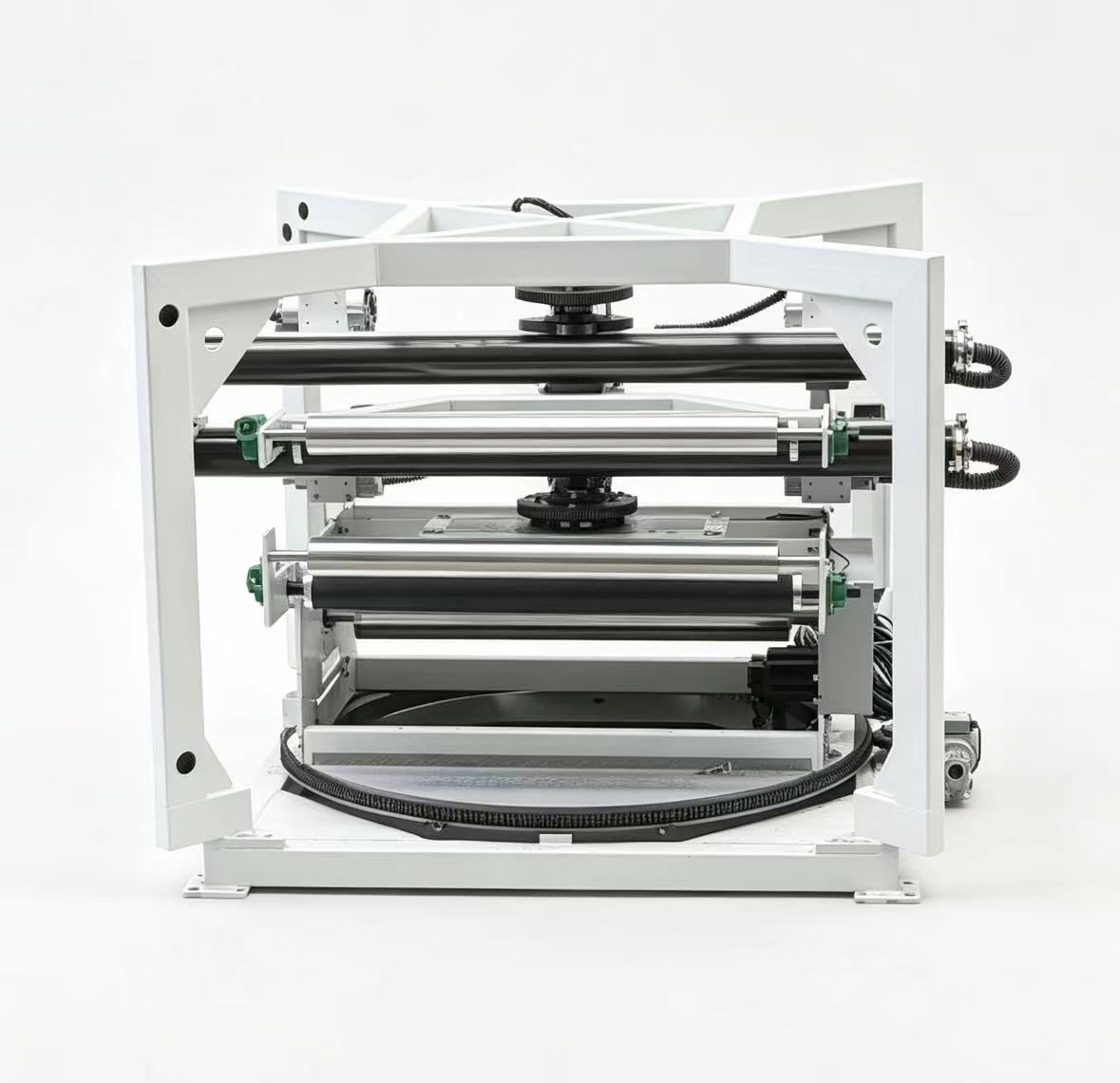

Oscillating haul-off | Additional gauge-distribution rotation at the nip — double randomization with rotary die | Maximum gauge uniformity for demanding lamination and printing applications |
Location: Ahmedabad, India — printed bag film manufacturer
Machine: Rotary Die ABA Film Blowing Machine, HDPE-optimized screws, IBC
Film product: HDPE printed shopping bag film, 30% regrind core, 0.018 mm × 800 mm
Before: Fixed-die ABA machine. Gauge variation ±11%. Flexo press running at 70% speed. Gauge-related returns: ~4% of monthly output.
After: Rotary die machine. Gauge variation ±4%. Press at 95% speed — zero tension complaints in 18 months. Gauge-related returns: under 0.5%.
Payback: 12 months from reduced returns and material savings from tighter gauge control.
15+ years manufacturing blown film equipment in Jiangyin, Jiangsu — machines running in 30+ countries.
CE-certified electrical and safety systems on all export machines. Each ships with wiring diagrams and spare parts catalog.
Pre-delivery FAT on every machine: We run your film structure at production speed and provide a full-roll gauge map before crating — you see the gauge uniformity before the machine ships.
2-year warranty on main drives, 1 year on electrical. Rotary die bearing assembly included in drive warranty. Critical spares stocked — shipped within 48 hours.
Remote video-guided commissioning as standard; on-site engineer available. Training covers rotary die operation, ABA layer ratio setup, HDPE processing parameters, and preventive maintenance.
Primarily HDPE and HDPE/LDPE blends. Virgin HDPE in the A extruder (skins); recycled HDPE, CaCO3-filled HDPE compound, or colored HDPE in the B extruder (core). The rotary die is optimized for HDPE's melt characteristics — not suitable for pure LDPE-only production (LDPE processes at lower temperatures and has different melt elasticity that affects rotary die sealing).
Fixed-die HDPE film typically achieves ±8-12% gauge tolerance. Rotary die film achieves ±4-6% tolerance without additional gauge control equipment. With optional automatic gauge control and online thickness sensor, ±3% is achievable. The improvement is most significant on film under 0.03 mm where gauge bands are proportionally larger relative to film thickness.
The rotary die adds a rotating union, drive motor, gear reducer, and bearing assembly. Routine maintenance: bearing lubrication every 500 operating hours, rotary union seal inspection every 1000 hours, and drive belt tension check monthly. This adds approximately 2-3 hours of maintenance per month compared to a fixed die. The rotary seal is the primary wear component — replacement every 8,000-12,000 hours depending on operating temperature.
Standard: 45-60 working days. Custom die diameter or non-standard width: 60-75 working days. Sea freight: Southeast Asia 7-10 days, Middle East 15-20 days, Africa 20-30 days, South America 25-35 days.
Target film structure (virgin/recycled layer ratio), lay-flat width range, typical film gauge, target output (kg/h), and downstream converting process (printing, lamination, bag making). Share your core-layer material specifications if using recycled content.
Yes. Rotary die film is physically identical to fixed-die film — same material, same gauge range, same surface properties. The only difference is the gauge uniformity. All downstream processes (printing, lamination, bag making, slitting) run rotary die film on the same machines with the same settings — they simply experience fewer gauge-related stoppages and rejects.
Training covers: rotary die startup and speed adjustment, ABA layer ratio programming, HDPE temperature profiling, rotary seal monitoring, and preventive maintenance. Written SOPs in English. Free refresher within warranty.
The rotary die drive motor adds approximately 1.5-3 kW to total machine power — a minor increment. The primary operating cost difference is rotary seal replacement every 8,000-12,000 hours, not electricity.
Tell us your film requirements — we'll configure and quote within 3 working days.
Target film structure: virgin/recycled layer ratio and material types
Lay-flat width range and typical film gauge (microns)
Target output: kg/h or tons/month
Downstream converting process: printing, lamination, or bag conversion
Current gauge-related reject rate (if known — for savings estimate)
Factory electrical supply and floor dimensions
