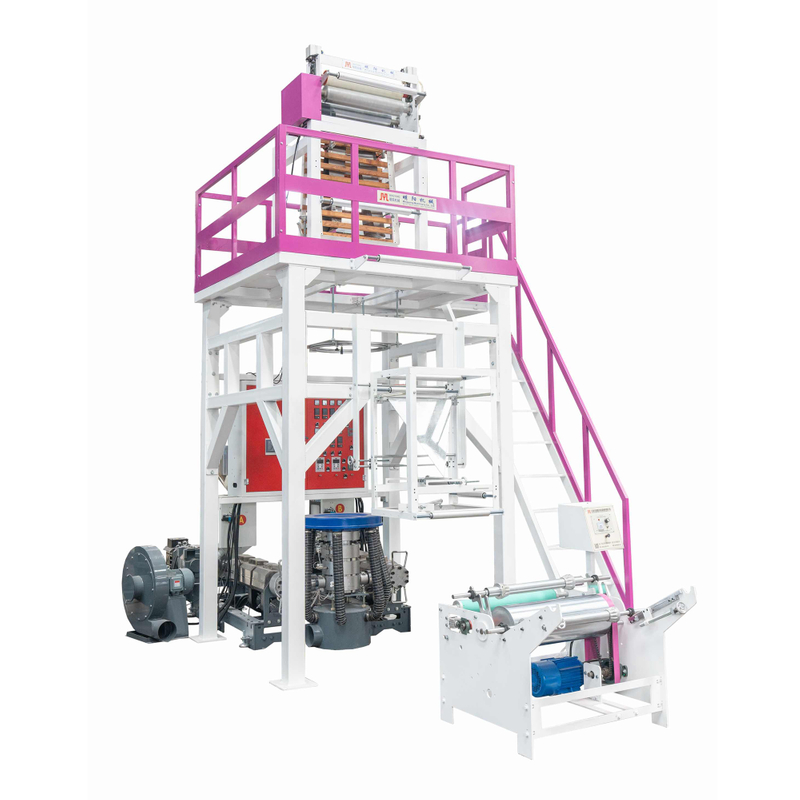

Mingyang ABA film blowing machine leverages ABA co-extrusion technology, endowing the film with more diverse performance attributes and application features. As a pivotal piece of production equipment in the modern packaging sector, it delivers dependable solutions for product packaging and protection, while driving the industry's development and innovation.
| Availability: | |
|---|---|
| Quantity: | |
Technical Parameters |
MYB-600 |
MYB-1100 |
MYB-1400 |
Suitable Materials |
HDPE+LLDPE+CaCO3 |
HDPE+LLDPE+CaCO3 |
HDPE+LLDPE+CaCO3 |
Max Film Width |
500mm |
1000mm |
1250mm |
Film Thickness Range |
0.015–0.15mm |
0.015–0.15mm |
0.015–0.15mm |
Dimensions (L×W×H) |
5200×2500×4800mm |
5200×3000×5200mm |
5500×3300×6500mm |
Power Supply |
380V/50HZ (Local voltage adaptable) |
380V/50HZ (Local voltage adaptable) |
380V/50HZ (Local voltage adaptable) |
Screw Diameter (A/B) |
45mm/45mm |
50mm/50mm |
60mm/60mm |
Driving Motor Power (A/B) |
11KW/11KW |
15KW/15KW |
30KW/30KW |
Die Head Material |
40Cr (Mirror Surface Treatment) |
40Cr (Mirror Surface Treatment) |
40Cr (Mirror Surface Treatment) |
Air Blower Power |
4kw |
5.5kw |
7.5kw |
Winder Type |
Single Friction Winder |
Single Friction Winder |
Single Friction Winder |
Discharge Roll Mode |
Manual Operation |
Semi-Automatic |
Automatic |
